Product Details:
|
| Product Name: | Vacuum Degasser | Machine Type: | Solid Control System |
|---|---|---|---|
| Weight: | 1200 KG | Dimension(L*W*H): | 2163 *1138*1512mm |
| Motor Power: | 37 KW | Material: | Stainless Steel |
| High Light: | Stainless Steel Solids Control Equipment,API vacuum degasser,1200 KG Solids Control Equipment |
||

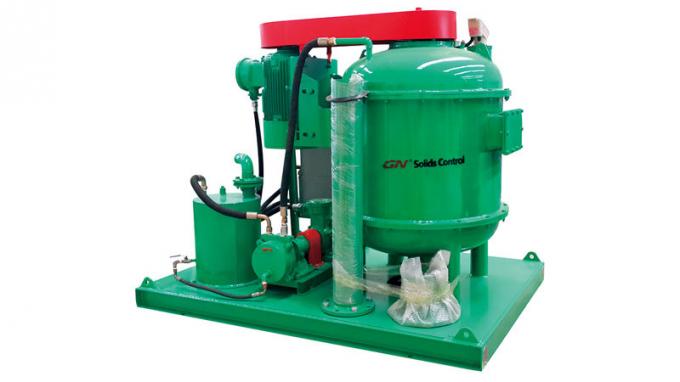

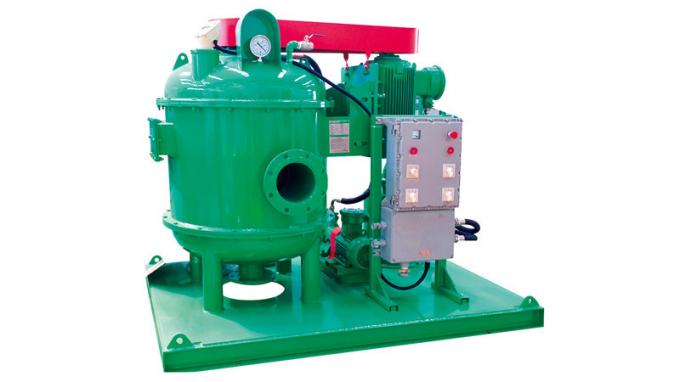

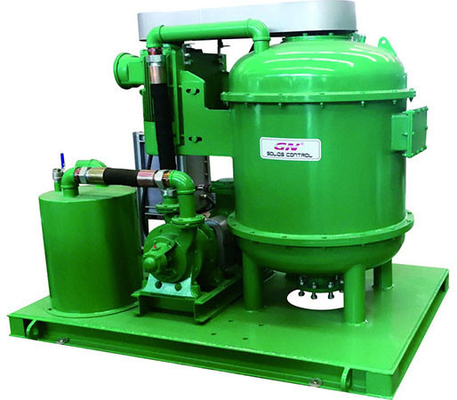

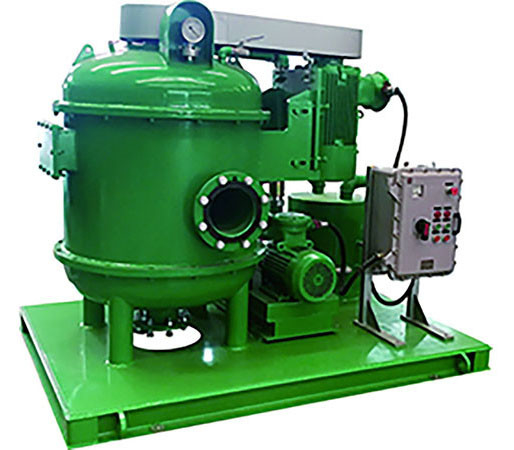

GNZCQ Series Vacuum Degasser Solids Control Equipment Horizontal Vacuum Degasser
Vacuum Degasser description of Solids Control Equipment
GNZCQ series Vacuum Degasser is adapted to get rid of various cut-in gases in the drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn’t need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.
Vacuum Degasser Features
| Model | GNZCQ270B | GNZCQ360B |
|---|---|---|
| Main diameter | 920mm | |
| Capacity | ≤270 m3/h (1188GPM) | ≤360 m3/h (1584GPM) |
| Vacuum Degree | -0.02~-0.04 Mpa | |
| Handling Efficiency | ≥95% | |
| Main Motor Power | 22Kw (30HP) | 37Kw (50HP) |
| Pump Motor Power | 7.5Kw (10 HP) | |
| Rotation Speed | 700RPM | 860RPM |
| EX Standard | ExdIIBt4 / IEC EX/ ATEX | |
| Suction Line Size | 6 Inch | |
| Output Size | 8 Inch | |
| Weight | 1730kg | 1870kg |
| Dimension: L×W×H | 2100×1605×1729mm | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
