Product Details:
|
| Product Name: | Mud Tank Valve | Media: | Drilling Fluid |
|---|---|---|---|
| System: | Solid Control System | Material: | Stainless Steel |
| Port Size: | 219mm, 273mm, 325mm | Working Pressure: | 1.1Mpa |
| Function: | Suction And Discharge Control Valve | Structure: | Control |
| High Light: | Underflow Mud Tank Suction Valve,Solid Control Mud Tank Valve,Mud Drilling Fluid Control Valve |
||

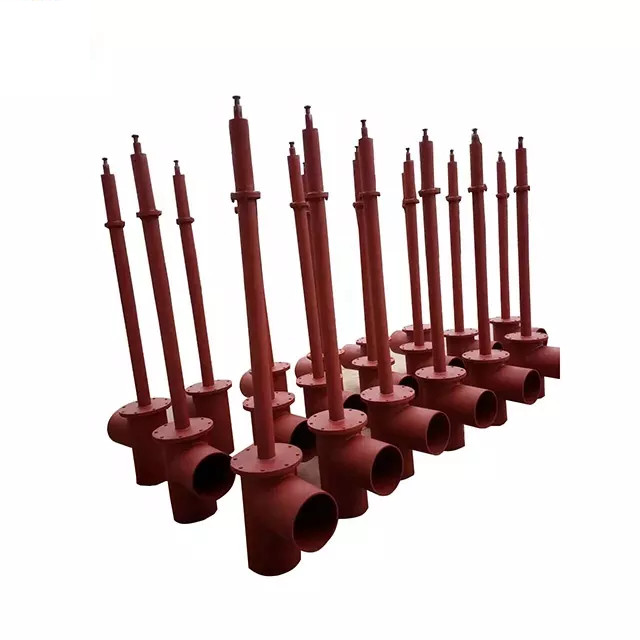

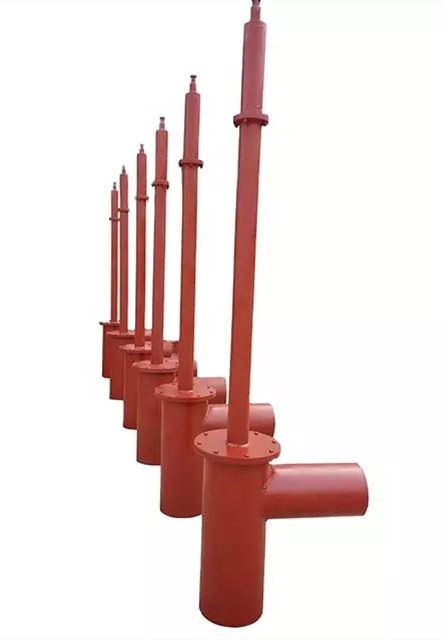

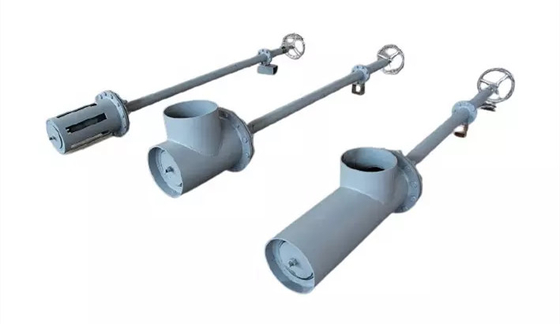

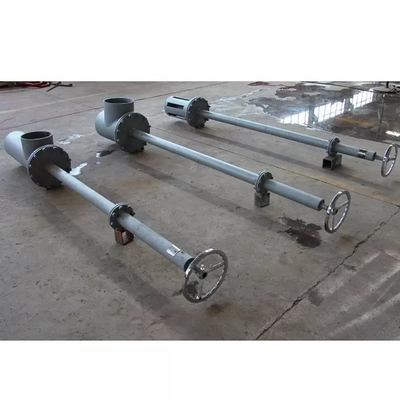

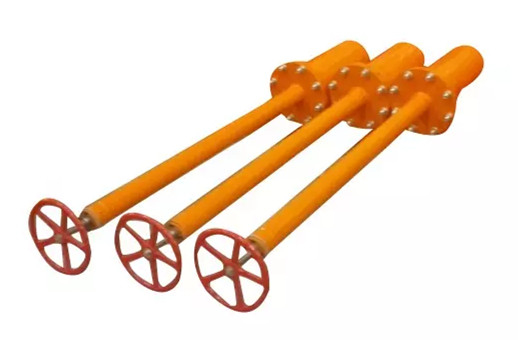

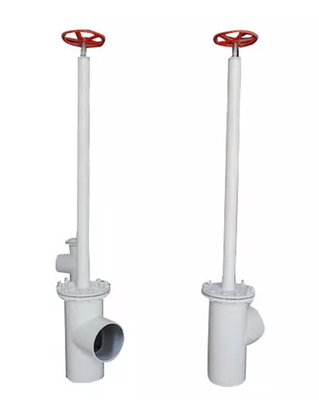

Mud Tank Suction Valve Solid Control Equipment Mud Tank Use Underflow Valve
Mud Tank Valve description of Solids Control Equipment:
Mud Tank Valve is the mud control equipment installed in the inside of mud tanks or water tanks. It is used to import mud or liquid phase and prevent different nature of mud or liquid.
Underflow Valve is suitable for the pipeline and the warehouse of the mud circulation tank with mud as the medium. As the control valve for suction and discharge, it also acts as the switch for the balance control between the warehouses.The valve is compact in structure and reasonable is design. Years of experience, the use of verne seals, longer life, more stable performance.
Underflow Valve Features of Solids Control Equipment
1. Good sealing property, assuring zero leakage;
2. Compostion of 50 precision components;
3. Flexible steering, Convenient operation;
4. High cost performance, fewer wearing parts, stand wear and tear;
| Mud tank control valve | |||
| Outer Connection Size | 219mm | 273mm | 325mm |
| Nominal Pressure | 1.1MPa | ||
| Dimensions | 2350*370*330mm | 2350*420*380mm | 2350*480*430mm |
| (Customizable) | |||
| Weight | 114kg | 118kg | 125kg |

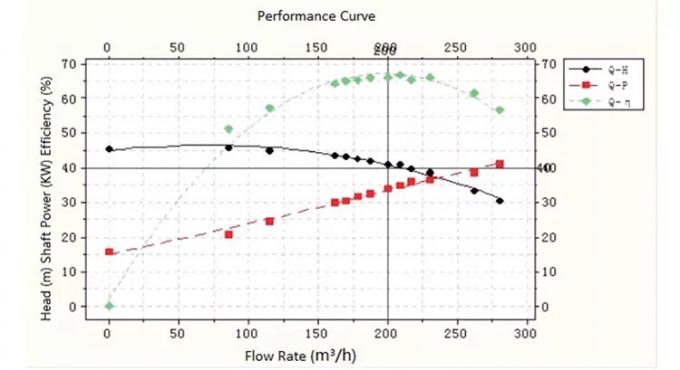

| Model 6 x 5 x 14 | |||||
| Flow Rate | Head | Shaft Power | Efficiency | Outlet Pressure | Roating Speed |
| m³/h | m | kw | % | m | r/min |
| 0.00 | 45.38 | 15.85 | 0.00 | 45.10 | 1490.00 |
| 85.07 | 45.85 | 20.74 | 51.24 | 45.00 | 1490.00 |
| 115.06 | 44.75 | 24.47 | 57.30 | 43.30 | 1489.00 |
| 161.17 | 43.58 | 29.80 | 64.20 | 41.50 | 1488.00 |
| 168.98 | 43.16 | 30.60 | 64.91 | 40.80 | 1487.00 |
| 178.20 | 42.62 | 31.62 | 65.42 | 40.00 | 1487.00 |
| 187.52 | 42.12 | 32.61 | 65.97 | 39.10 | 1486.00 |
| 200.59 | 40.99 | 33.91 | 66.04 | 37.60 | 1486.00 |
| 209.20 | 40.76 | 34.82 | 66.69 | 37.00 | 1485.00 |
| 216.90 | 39.60 | 35.84 | 65.26 | 35.50 | 1485.00 |
| 230.72 | 38.46 | 36.59 | 66.06 | 34.00 | 1485.00 |
| 261.86 | 33.27 | 38.60 | 61.46 | 28.20 | 1483.00 |
| 280.51 | 30.56 | 41.12 | 56.78 | 25.00 | 1482.00 |
| Index | Flow Rate | Head | Shaft Power | Pump Efficiency | |
| Rating | 200 | 40 | 35.1 | 62 | |
| Measured Value | 200.59 | 40.99 | 33.91 | 65.04 | |
