Product Details:
|
| Product Name: | Single Pointer Pressure Gauge System | Size: | 6" |
|---|---|---|---|
| Capacity Range: | 0~1000 Psi To 0~15000 Psi | Connection: | 2" Weco 1502 Nut And Female Sub |
| Place Of Origin: | China | Application: | Oil Field |
| High Light: | CMG 100 Single Line Pressure System,Single Pointer Pressure Gauge System,Drilling Instruments Pressure Gauge |
||

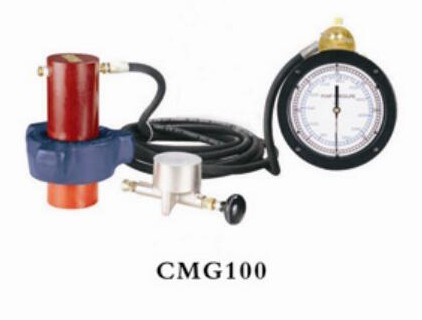

Single Pointer Pressure Gauge System Drilling Instruments CMG 100 Single Line Pressure System
Single Pointer Pressure Gauge System description of Drilling Instruments
Mud pump pressure system consists of mud pump sensor, mud pressure gauge, hydraulic hose and accessories.
Mud pressure effects on the fluid in the diaphragm, make the piston move and extrude hydraulic fluid in the cylinder through the hose (there is no piston in CD106, so the fluid can move untill bourdon tube barrier free), pressure is teansmitted to bourdon tube, make the tube end move. Shifting of the tube end was enlarged by movement, then make the center gear turns clockwise, the pointer indicates the pressure of mud.

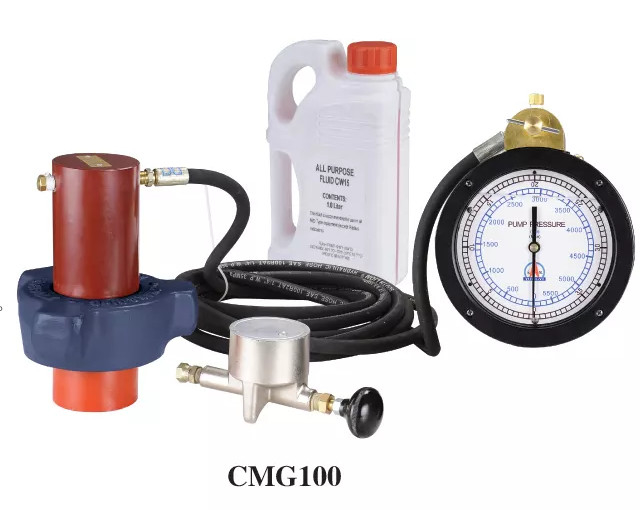

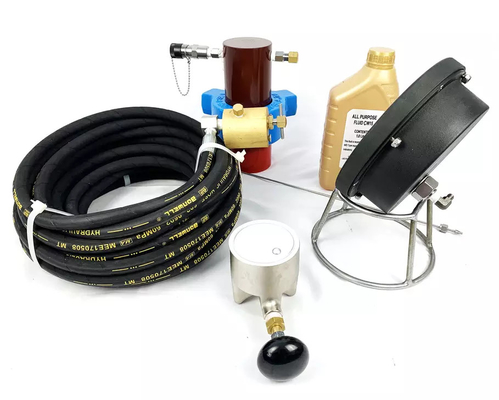

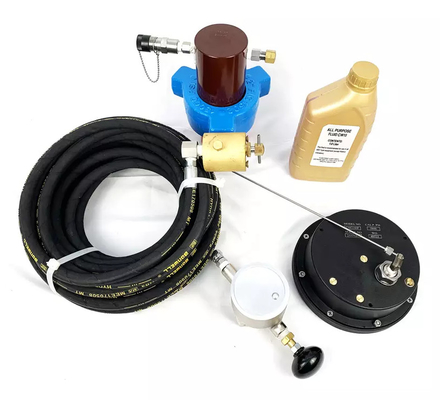

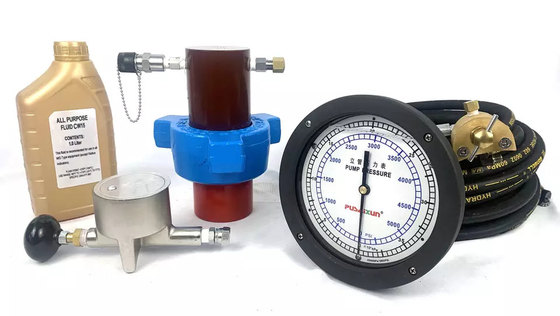

Gauge provides quick, accurate check of mud pump operation. The systems monitor mud pump operations detect potential problems accurately and efficiently .The gauge comes in box mounted or panel mounted configurations. The system consists of 6 inch pressure gauge, a gauge protector or 1:1 piston separator, a high-pressure hose and hand pump.
| To order specify | |
| Apllication | |
| Required capacity and English or Metric divisions | |
| Gauge mounting | |
| Diaphragm protector, 1:1 piston isolator or 4:1 debooster | |
| Hose length | |
| Single pointer or dual pointer (compound) gauge | |
| Features | |
| Standard capacity | 7000kPa, 14,000kPa, 21000kPa, 35,000kPa, 42,000kPa, 70,000kPa |
| Standard capacity | 1,000psi, 2,000psi, 3,000psi, 5,000psi, 6,000psi, 10,000psi, 15,000psi |
| Available in psi, Mpa, and bar capacities | |
| Gauge Protector comes complete with a 2" Weco 1502 nut and female sub | |
