Product Details:
|
| Product Name: | Shale Shaker Screen | Material: | 304 Stainless Steel |
|---|---|---|---|
| Shaking Intensity: | 7.2g | Condition: | New |
| Weight: | 7.2 KG | Size: | 3140*1980*1540mm |
| Dimension(L*W*H): | 2700*1800*1500mm | Application: | Drilling Fluid Shale Shaker, Oil Field |
| High Light: | API Solid Control Equipment,API 304 Shale Shaker Screen,304 Stainless Shale Shaker Screen |
||

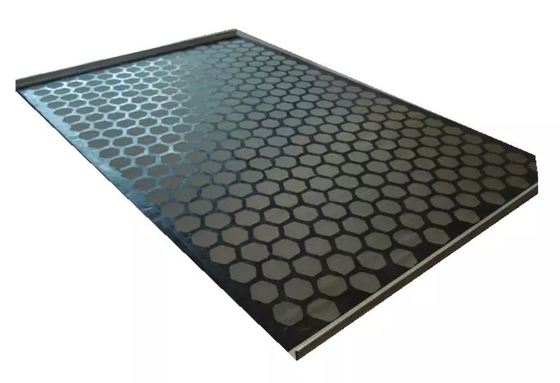

API 304 Stainless Steel Frame Solid Control Equipment Shale Shaker Screen
Shaker Screen description of Solids Control Equipment:

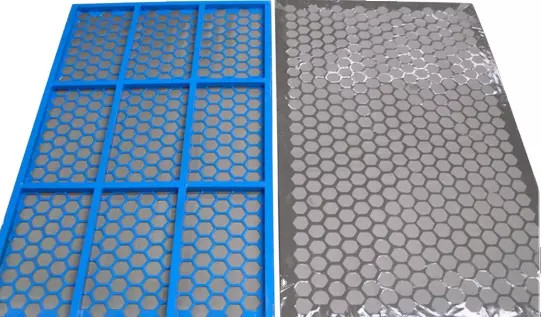

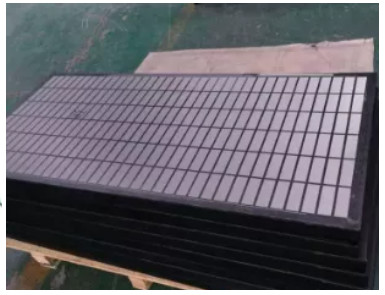

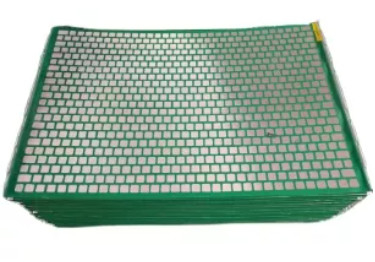

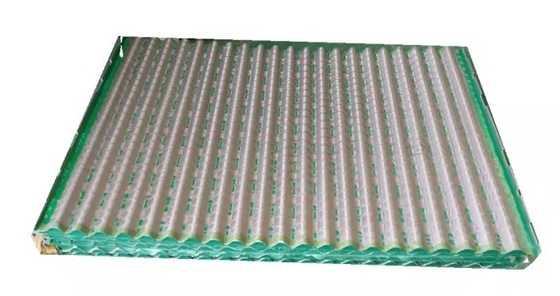

I. These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, get a better filtering effect.
II The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together. Infinitely enhance the screen intensity and endurance, get a better filtering effective. Mesh sizes ranging from 20 to 325. The whole cloth is divided into independent small surfaces, prevent the part excessive expansive damaged, with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.
Solids Control Equipment - Shaker Screen Feature:
1. Composite frame screen is mainly made up of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
2. Every layer wire cloth has different meshes, accurately and reasonably make screening more micromesh.
3. High-strength composite frame screen and moderate tensional screening cloth greatly enhances the tolerable flow.
4. Rapid wedge tensioning device makes screen installation more convenient, and saves time of machine halt for changing.
5. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.
6. Excellent high-strenght composite frames enhance corrosion resistance, have good shock absorption and extend working life of screen.

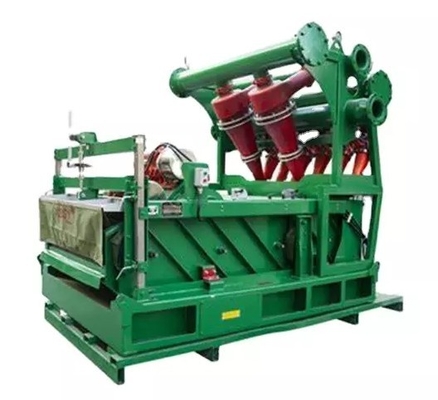

| Model | JZS280-3P | JZS270-4P | JZS240-3P | JZS220-3P | JZS180-2P |
| Motor power | 2×2.2 kW | 2×2.2 kW | 2×2.2 kW | 2×2.2 kW | 2×1.3 kW |
| Screen area(m2) | 3×0.833×1.15 | 4×0.585×1.165 | 3×0.7×1.15 | 3×0.7×1.05 | 2×0.833×1.15 |
| Shaking intensity(g) | 7.2 g | 7.2 g | 7.2 g | 7.2 g | 7.2 g |
| Discharge capacity | 42 l/s | 40 l/s | 35 l/s | 30 l/s | 26 l/s |
| Adjustable range | -2°~+6° | -2°~+6° | -2°~+6° | --2°~+6° | -2°~+6° |
| Overall dimension,mm | 3140×1980×1540 | 2970×1980×1530 | 2700×1980×1540 | 2700×1900×1540 | 2300×1940×1300 |
| Weight | 2000 kg | 2000kg | 1900kg | 1700 kg | 1200kg |
| Max. Liner (in mm) | 6-3/4*7170 | 6-3/4:7170 | 6-3/457170 | 77180 | 77180 |
| Overall Dimension L*W*H (mm) |
3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
