Product Details:
|
| Type: | RAM BOP | RAM: | Single |
|---|---|---|---|
| Core: | 3" | Material: | Alloy Steel |
| Machine Type: | Drilling Equipment | Colour: | Red |
| Processing Type: | Forging | Working Pressure: | 2,000 To 15,000 Psi |
| Working Temperature: | T-0,T-20,T-75 | Nominal Diameter: | 7-1/16" To 21-1/4" |
| High Light: | FZ Series Single Ram BOP,API 16A Single Ram BOP,API 16A Blowout Preventer |
||

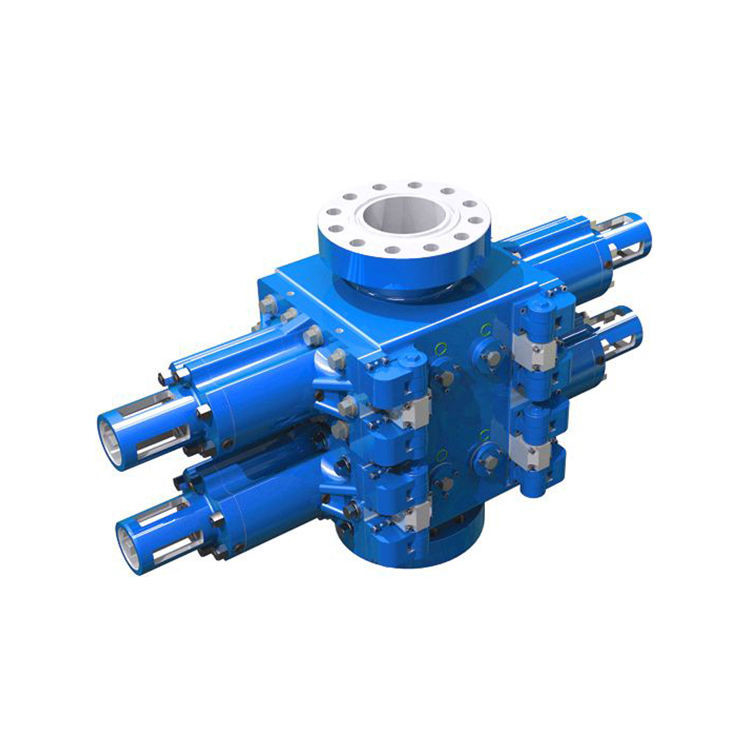

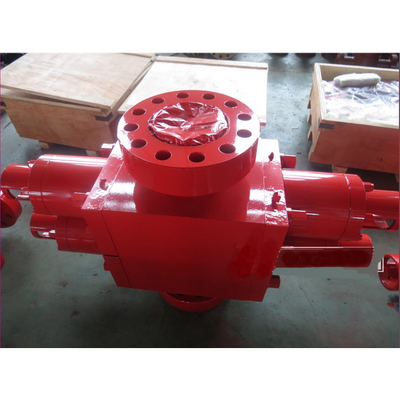

API 16A FZ Series Single Ram BOP/Blowout Preventer For Well Control
BOP Spare Parts description:

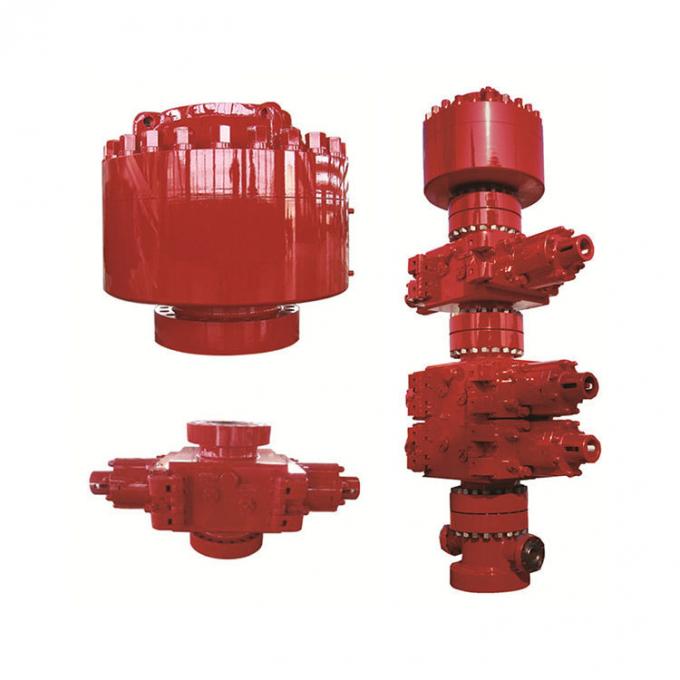

The blowout preventer(BOP) is an essential pressure control device during driling and operations, as it serves to prevent the uncontrolled leakage of oil/gas from the wells. We have annular BOP, single ram BOP and double ram BOP. The BOP rams are manifold, including: blind ram, pipe ram, shear ram and variable diameter ram.
Connection types:The BOP are offered with studded, flanged and hubbed top and bottom connections. The sizes of flanges, bolts, clamps and ring grooves all conform to API 16A and GOST standards.
Single RAM BOP Features of BOP Spare Parts

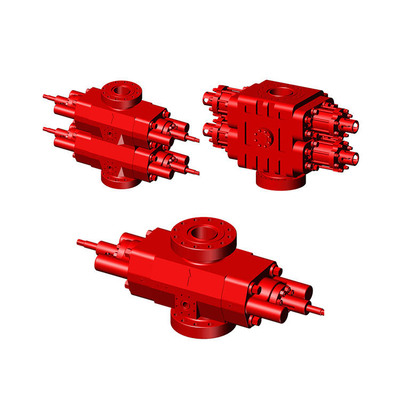

1) According to the number of ram installed in each set, ram BOP can be divided into: Single ram, double ram and three ram BOP, which are respectively installed with one ram, two rams or three rams.
2) According to the ram opening and closing method, ram BOP can be divided into manual locking and hydraulic locking.
3) According to the different opening and closing method of bonnet, ram BOP can be divided into two forms: Rotating bonnet ram BOP and linear bonnet ram BOP. For the rotating bonnet ram BOP, when opening or closing bonnet, the bonnet rotates on the hinge sear fastened on the body, the ram cam cavity shape of such BOP is rectangle.
4) For the linear bonnet ram BOP, when opening or closing bonnet, the bonnet makes linear motion along the two bonnet opening and closing plunger rods fastened on the body, the ram cavity shape of such BOP is elliptic.
BOP Spare Parts specification:
| Model | Bore (in) | Working Pressure (Psi) | Hydraulic Control Pressure (Psi) | Piston Size (in) | Piston Stroke (in) | Working Temperature (F) |
| 2FZ18-21 | 7-1/16" | 3000 | 1200-1500 | 5.9 | 4.1 | -4F--186"F |
| 2PZ18-35 | 7-1/16" | 5000 | 5.9 | 4.1 | ||
| 2FZ23-21 | 9" | 3000 | 5.9 | 5.9 | ||
| 2FZ23-35 | 9" | 5000 | 8.6 | 5.9 | ||
| 2FZ23-70 | 9" | 10000 | 9.8 | 5.9 | ||
| 2FZ28-35 | 11" | 5000 | 9.8 | 6.3 | ||
| 2FZ28-70 | 11" | 10000 | 9.8 | 6.3 | ||
| 2FZ28-105 | 11" | 15000 | 13.7 | 7.1 | ||
| 2FZ35-14 | 13-5/8" | 2000 | 6.3 | 7.1 | ||
| 2F235-21 | 13-5/8" | 3000 | 8.7 | 7.1 | ||
| 2F235-35 | 13-5/8" | 5000 | 13.7 | 7.1 | ||
| 2FZ35-70 | 13-5/8" | 10000 | 13.7 | 8.2 |
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
