Product Details:
|
| Machinery Test Report: | Provided | Warranty: | 1 Year |
|---|---|---|---|
| Core Components: | Engine, Bearing, Motor, Gear | Product Name: | Mud Gas Separator |
| Main Body Diameter(mm):: | 800 | Discharge Capacity(m3/h):: | 260 |
| Inlet Diameter(mm): | 125/150 | Outlet Diameter(mm):: | 200/250 |
| Power:: | Customized | ||
| High Light: | API Oil Drilling Mud Gas Separator,Solid Control System Mud Gas Separator,800mm Solids Control Equipment |
||

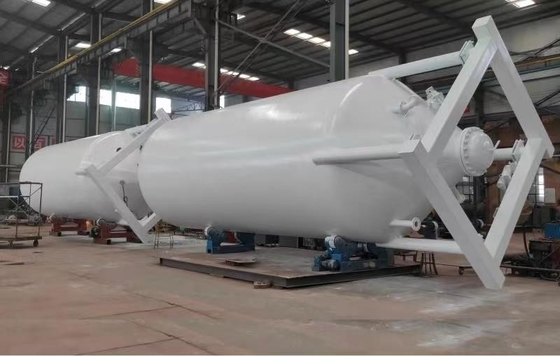

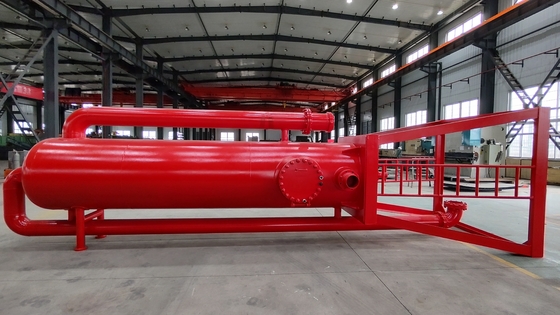

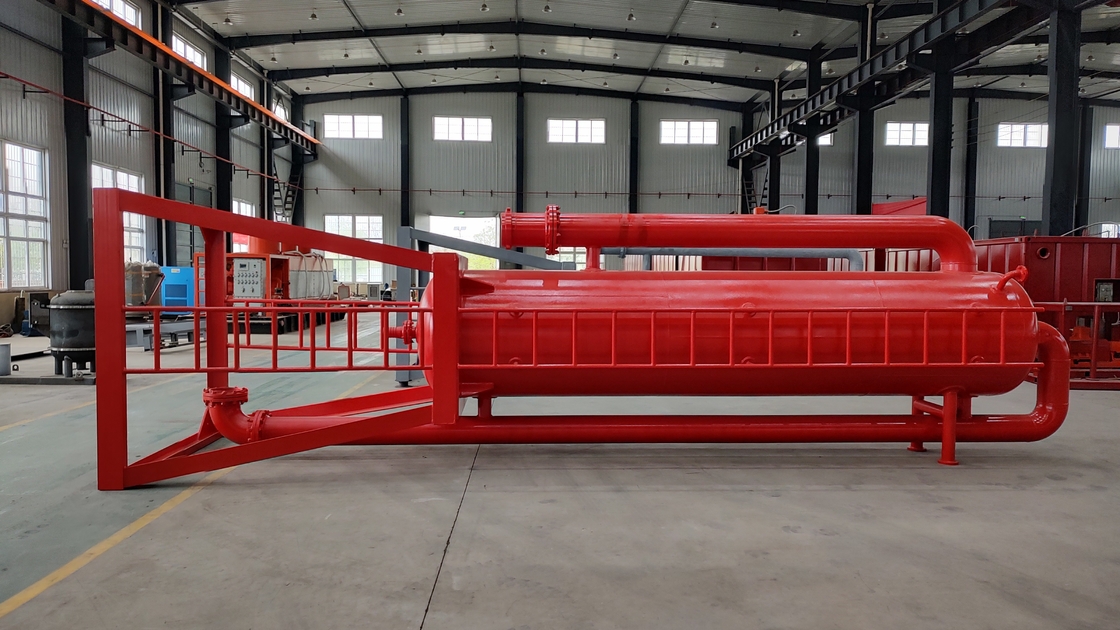

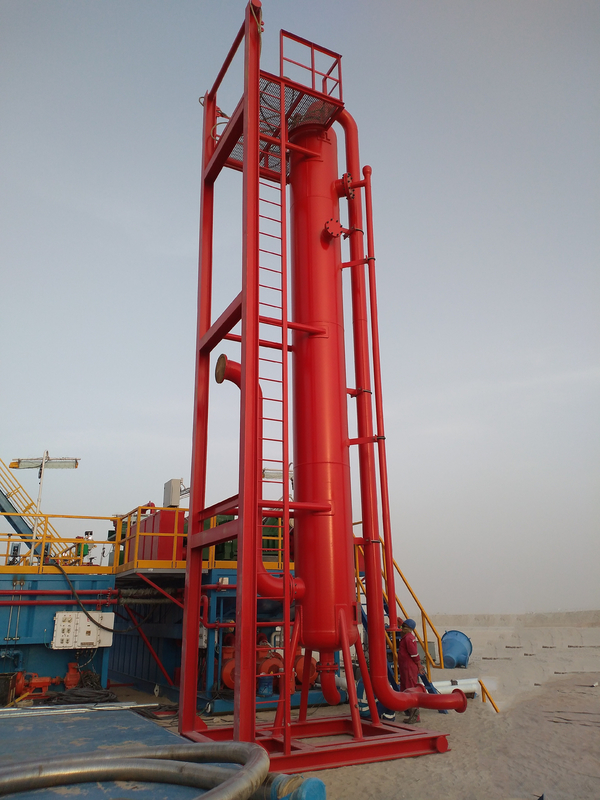

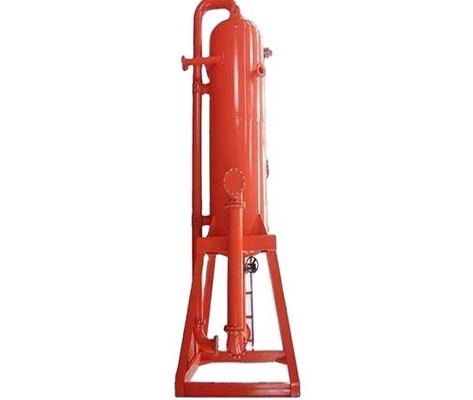

API Mud Gas Separator For Solid Control System In Oil Drilling For Drilling Liquid Or Fluid And Gas Separation
Liquid－gas separator of drilling liquid is solids control equipment used to provide pre-degassing to gas cut drilling liquid.
1.0 Mpa
| Model | JYQ-800-1 | JYQ-1000-1 | JYQ-1200-1 |
| Main body diameter(mm) | 800 | 1000 | 1200 |
| Discharge capacity(m3/h) | 260 | 300 | 320 |
| Inlet diameter(mm) | 125/150 | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 | 200 |
| Working pressure(MPa) | 1 | 1 | 1 |
| Weight(kg) | 2100 | 2800 | 3200 |
| Overall dimension(mm) | 1600×1600×5762 | 2000×2000×6500 | 2200×2200×6500 |
1.6Mpa
| Model | JYQ-1000-1.6 | JYQ-1200-1.6 |
| Main body diameter(mm) | 1000mm | 1200 mm |
| Discharge capacity(m3/h) | 300 m3/h | 320 m3/h |
| Inlet diameter(mm) | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 |
| Working pressure(MPa) | 1.6 | 1.6 |
| Weight(kg) | 3200kg | 3900kg |
| Overall dimension(mm) | 2200×2200×6500 | 2200×2200×6500 |
4.0 Mpa
| Model | JYQ-1000-4 | JYQ-1200-4 |
| Main body diameter(mm) | 1000 | 1200 |
| Discharge capacity(m3/h) | 300 | 320 |
| Inlet diameter(mm) | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 |
| Working pressure(MPa) | 4 | 4 |
| Weight(kg) | 8000 | 9500 |
| Overall dimension(kg) | 2300×2300×6500 | 2300×2300×6500 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
