Product Details:
|
| Type: | Rubber Packing Element / Unit / Core | Nominal Diameter: | 7 1/16"-21 1/4" |
|---|---|---|---|
| Piston Stroke: | 100 Mm | Material: | Rubber |
| Working Pressure: | 2000psi-15000psi(14 Mpa-105Mpa) | Top & Nottom Connection: | Flanged,studded |
| Operating Temperature: | -18deg--121deg | Standard: | API Spec 16A,16C |
| High Light: | Rubber Packing Element Annular BOP,Annular BOP Spare Parts,Rubber Packing BOP Spare Parts |
||

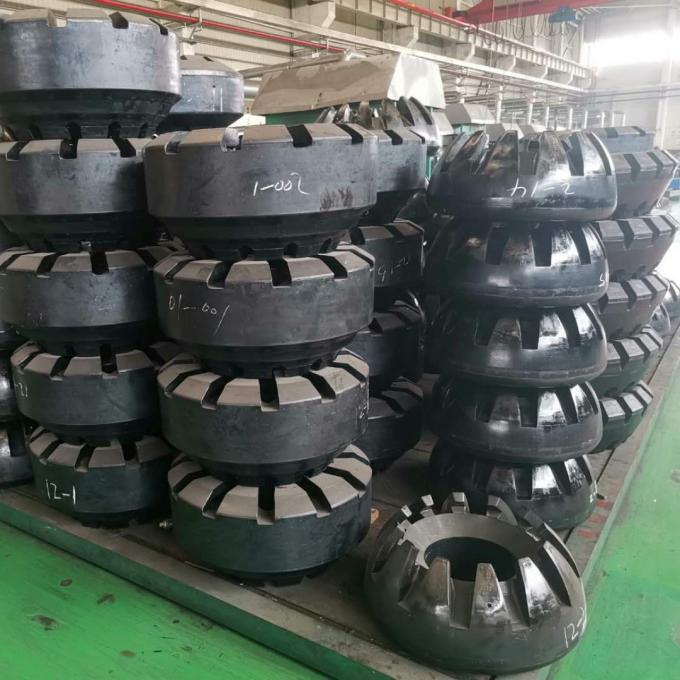

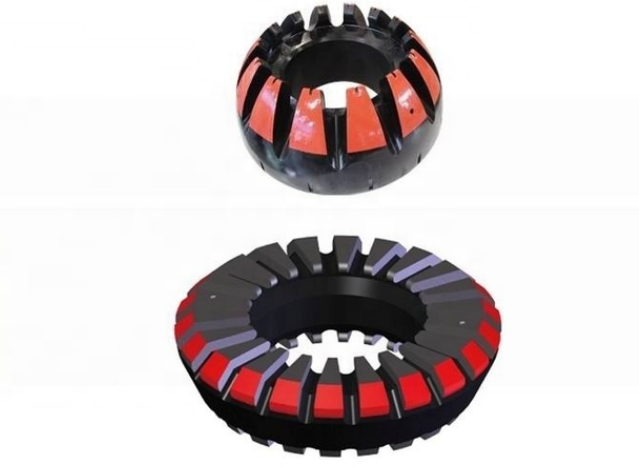

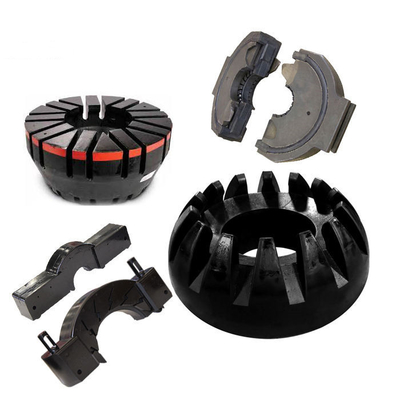

BOP Spare Parts API 16A Annular BOP Rubber Packing Element / Unit / Core
Characters:

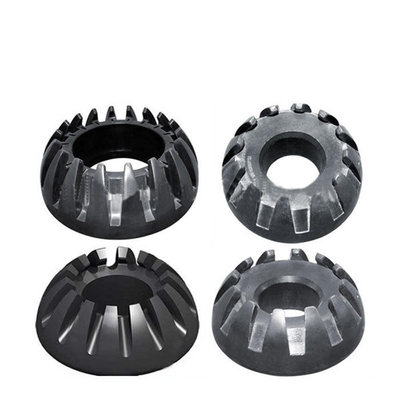

In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.

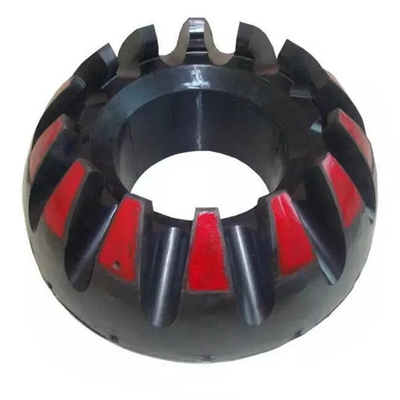

Blowout preventer with spherical plastic core and dust-proof ring.
Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in ans shapes, better performance by combining with ran blowout preventer in the use.
Working Principle
When wells must be sealed in case of kicks high pressure (10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to moce the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening , hydraulic pressure oul enters into open-cavity above piston from housing oul inlet, to push piston moving downwards , so that plastic will reset with its own elasticity, wellhead will be open.
| BOP Size and Working Pressure | Spherical Sealing Element Size | |||
| OD(mm) | ID(mm) | H(mm) | ||

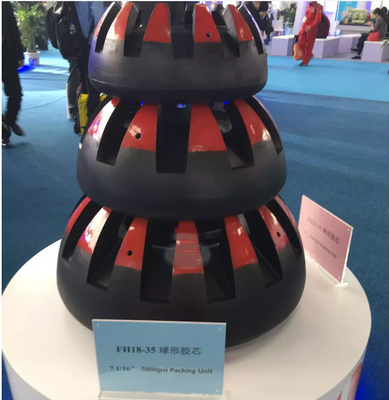

| 7 1/16″-5,000psi | FH18-35 | 478 | 189.5 | 219 |
| 9″-5,000psi | FH23-35 | 616 | 242 | 290 |
| 11″-3,000psi | FH28-21 | 703 | 296 | 284 |
| 11 ″-5,000 psi | FH28-35 | 703 | 290 | 319 |
| 11 ″-10,000 psi | FH28-70 | 755 | 310 | 344 |
| 13 5/8 ″-5,000 psi | FH35-35 | 810 | 360 | 368 |
| 13 5/8 ″-10,000 psi | FH35-70 | 833 | 360 | 365 |
| 20 3/4"-3,000psi | FH53-21 | 982 | 545 | 400 |
