Product Details:
|
| Product Name: | Pressure Sensor Diaphragm Protector | Pressure: | 7 Mpa, 14 Mpa, 21Mpa, 35Mpa, 42Mpa,80Mpa, 100Mpa |
|---|---|---|---|
| Material: | Steel | Standard Length: | 50 Ft |
| Weight: | 5 Kg | Application: | Oilfield |
| High Light: | Drilling Diaphragm Protector,Fig1502 Union Nut Pressure Sensor,Oilfield Steel Pressure Sensor |
||

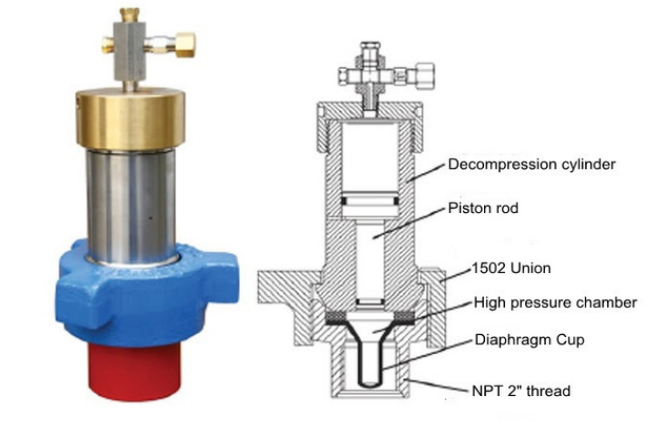

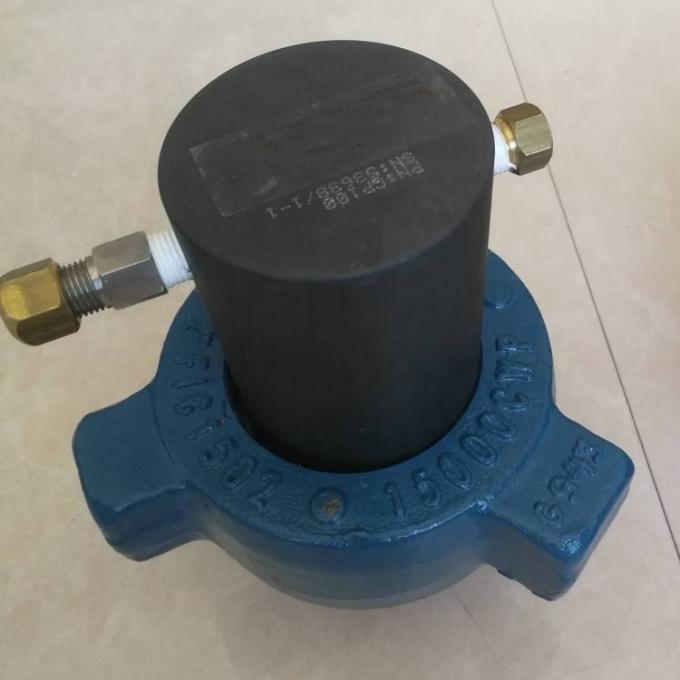

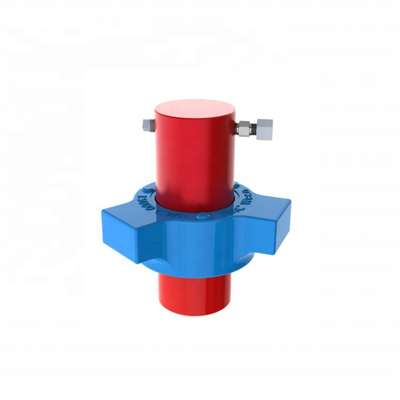

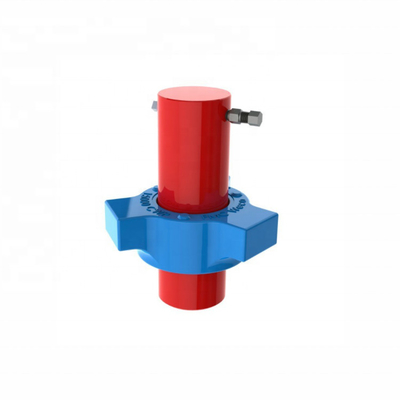

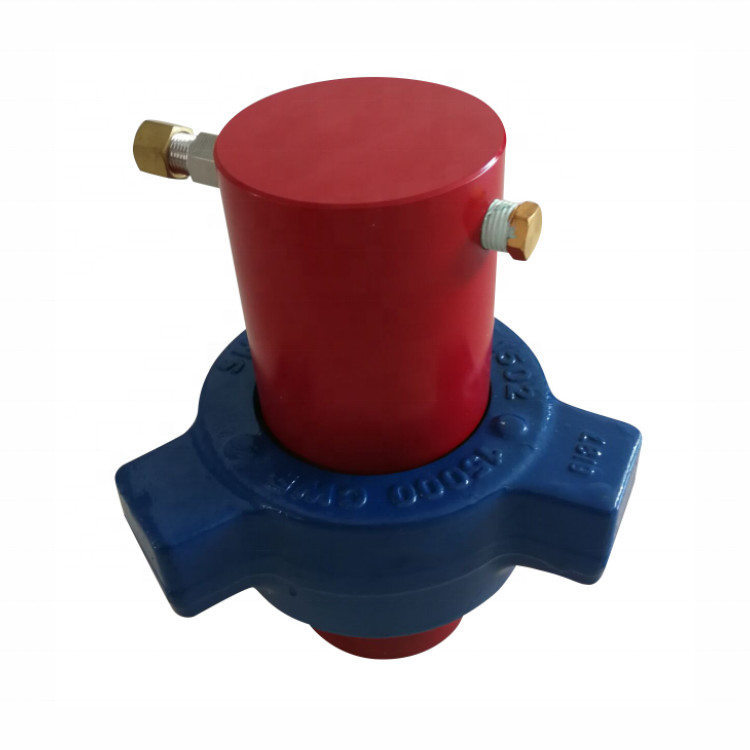

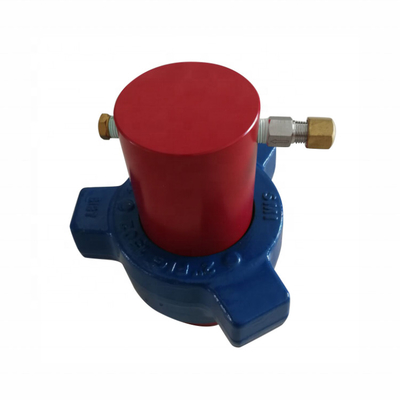

Pressure Sensor /Diaphragm Protector With Fig1502 Union Nut for Drilling Instrument
Description:
Pressure sensors including gauge protector, piston isolator, 4:1 pressure debooster. These sensors monitor mud pump operations detect potential problems accurately and efficiency. Easy to maintain in the field, these pressure sensors will provide you with years of dependable service.
Features
- Piston isolator test pressure over than 15,000psi.
- Gauge protector can test pressure less than 15,000 pis.
- 4:1 debooster uses for high pressure, max pressure is 15,000 psi.
- Pressure range from 1,000psi, 3,000psi, 5,000psi, 6,000psi, 10,000psi and 15,000psi.
- Guage protector comes standard with 50ft hose, for hose over than 50ft, use 1:1 piston isolator.
| Product Name | Pressure Sensor Diaphragm protector |
| Type | CD106X |
| Material | Steel |
| Standard | API |
| Working Pressure | 7 Mpa, 14 Mpa, 21Mpa, 35Mpa, 42Mpa,80Mpa, 100Mpa |
| Standard Length | 50ft |
| Application | Oil Field |
| Brand | Topland |
| Origin | China |
| Packing | Standard export packing |
