Product Details:
|
| Product Name: | Blowout Preventer | Voltage: | 500-20000PSI |
|---|---|---|---|
| Weight: | 10000kg | Dimension: | 560*425*265mm |
| Power: | 180/230/280/350/430/480/530/540 | Application: | Oilfield Wellhead Tools |
| Type: | Shaffer | Condition: | New |
| High Light: | Shaffer Type Double Ram Bop,Blowout Preventer BOP Spare Parts,Oilfield Double Ram Bop |
||

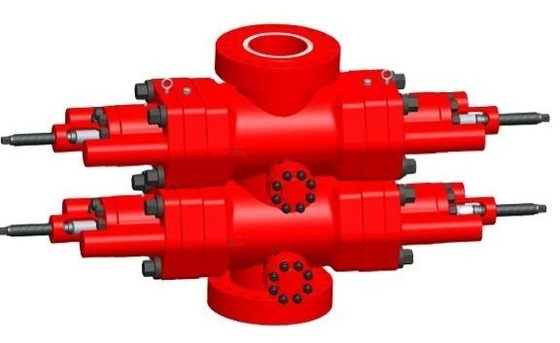

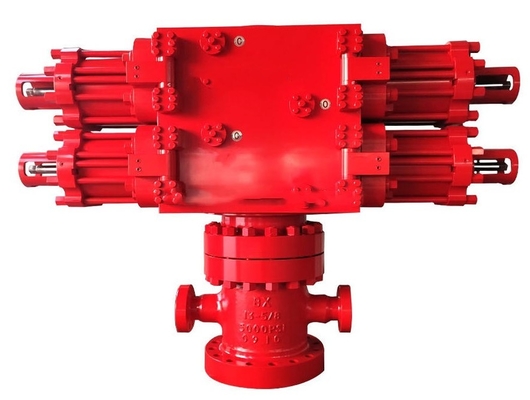

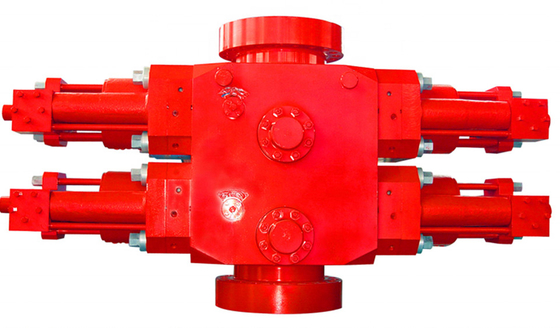

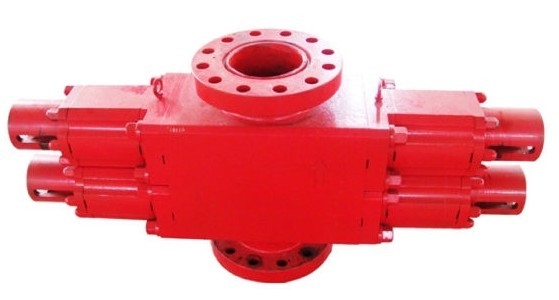

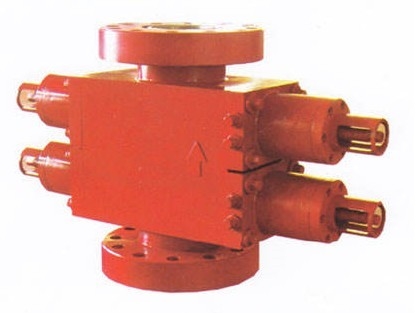

Blowout Preventer BOP Spare Parts Shaffer Type Double Ram Bop
Double Ram BOP description of BOP Spare Parts
The blowout preventer is used to close the wellhead during oil testing, workover, completion and other operations to prevent blowout accidents. It combines the two functions of full seal and half seal. It has the characteristics of simple structure, easy operation, high pressure resistance, etc. , It is a safety seal wellhead device commonly used in oil fields to prevent blowouts.

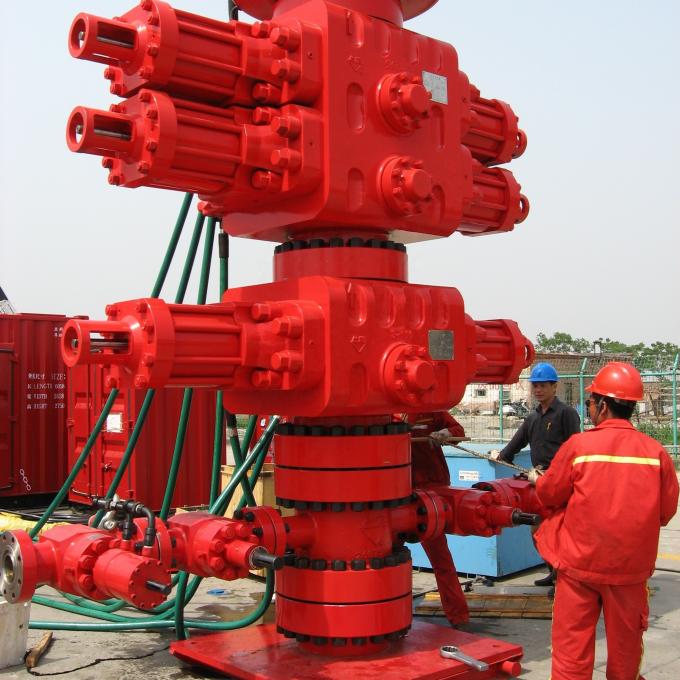

During oil drilling, it is installed on the wellhead casing head to control high-pressure oil, gas, and water blowout devices. When the oil and gas pressure in the well is high, the blowout preventer can close the wellhead (shut down). When the heavy mud is pressed into the drill pipe, there is a four-way under the ram, which can replace the mud invaded by gas, increase the pressure of the liquid column in the well, and suppress the ejection of high-pressure oil and gas.
Double RAM BOP Features
1. Double ram BOP seals annular space between tubing and casing or wellbore.
2. Double ram BOP suspends and stabilizes string.
3. Double ram BOP with side outlets could be used for choke and blowout.
4. Dou ble ram BOP can be used in operation under pressure.
| Model | 2FZ18-21 | 2FZ18-35 |
| Rated working pressure(psi) | 3000 | 5000 |
| Nominal diameter(in) | 7 1/16 | 7 3/8 |
| Strength pressure test(psi) | 6000 | 7500 |
| Oil cylinder working pressure(psi) | 1200-1500 | 1200-1500 |
| Piston stroke(mm) | 100 | 100 |
| Metal temperature class | -29-121C | -29-121C |
| Nonmetal temp. class | -18~121'C | -18-121°C |
| Oil cylinder closed chamber volume | 2x 1.75L | 2x 1.75L |
| Oil cylinder open chamber volume | 2x 1.50L | 2x 1.50L |
| Ram closed interal(s) | <15 | <15 |
| Ram specification | 2 3/8" 2 718" 3 1/2" 4 1/2" blind ram | 2 3/8" 2 718"3 1/2" 4 1/2" blind ram |
| Bolt quantity and diameter | 12-M30 x3 x210 | 12-M36x3x 230 |
| Ring gasket | R45 | R46 |
| Dimension(mm) | 1350x 380x 638 | 1350 x 395 x 656 |
| Weight(lb) | 1717 | 1780 |
