Product Details:
|
| Type: | Composite Frame Screen | Hole Shape: | Rectangular |
|---|---|---|---|
| Core Components: | Screen | Standard: | API Standard |
| Dimension: | 585*1165 Mm | Mesh: | 20-325 |
| Condition: | New | Application: | Oilfield |
| High Light: | Shaker Screen Solids Control Equipment,API 325 Solids Control Equipment,Oilfield Rectangular Composite Frame Screen |
||
API 20 API 325 Shale Shaker Screen Solids Control Equipment Composite Frame Screen

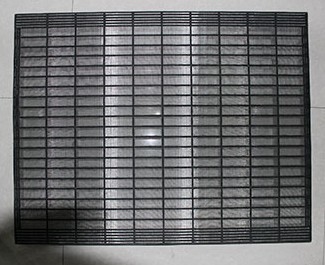

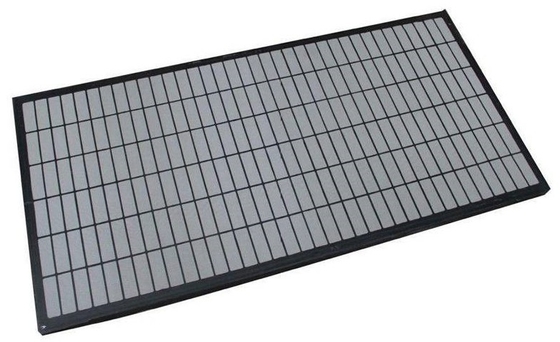

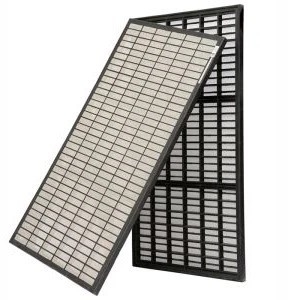

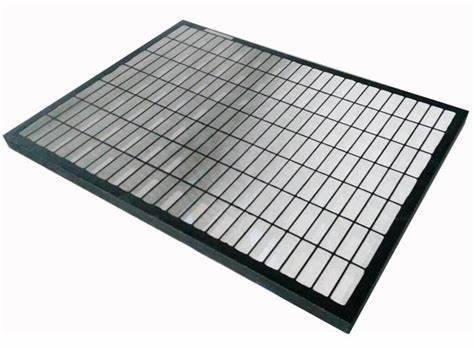

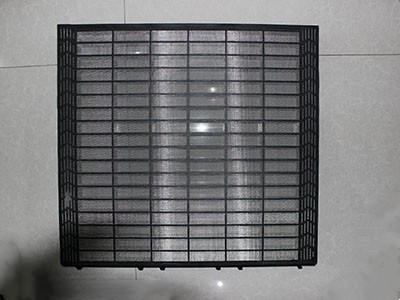

Composite Frame Screen Description of Solids Control Equipment:
1.Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.
3.High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow.
4.Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing.
5.Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.
6. Excellent high-strength composite frames enhance corrosion resistance. Have good shock absorption and extend working life of screen.
Shale Shaker Screen Datasheet of Solids Control Equipment:
| Screen Model | Range of Mesh | Dimension(W*L) | Brand&Model of shaker |
| GMF-1/1 | 20-325 | 585×1165mm | MONGOOSE PT＆PRO |
| GMF-1/2 | 20-325 | 585×1165mm | MONGOOSE PT＆PRO |
| GMF-2/1 | 20-325 | 635×1250mm | KING COBRA＆COBRA |
| GMF-2/2 | 20-325 | 635×1250mm | KING COBRA＆COBRA |
| GMF-3 | 20-325 | 610×660mm | MD-2＆MD-3 |
| GMF-4 | 20-325 | 913x650 | VSM300 |
| GMF-5 | 20-325 | 700x1250 |
| API RP 13C(ISO 13501) | |
| D100 Particle sizing (Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
