Product Details:
|
| Warranty: | 1 Year | Model Number: | SB Series |
|---|---|---|---|
| Horsepower: | 40 | Max Power: | 75KW |
| Power: | Electric | Application: | Mining Industry, Washing And Cleaning, Wastewater Transport And Flood Control, Wastewater Treatment, Water Distribution, Water Treatment Solutions |
| High Light: | SB Mission Centrifugal Pump,Mud Sand Solids Control Equipment,Solids Control Centrifugal Mud Pump |
||

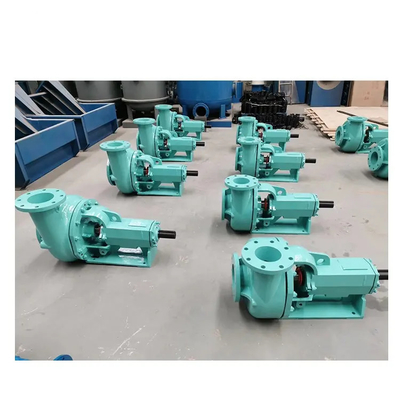

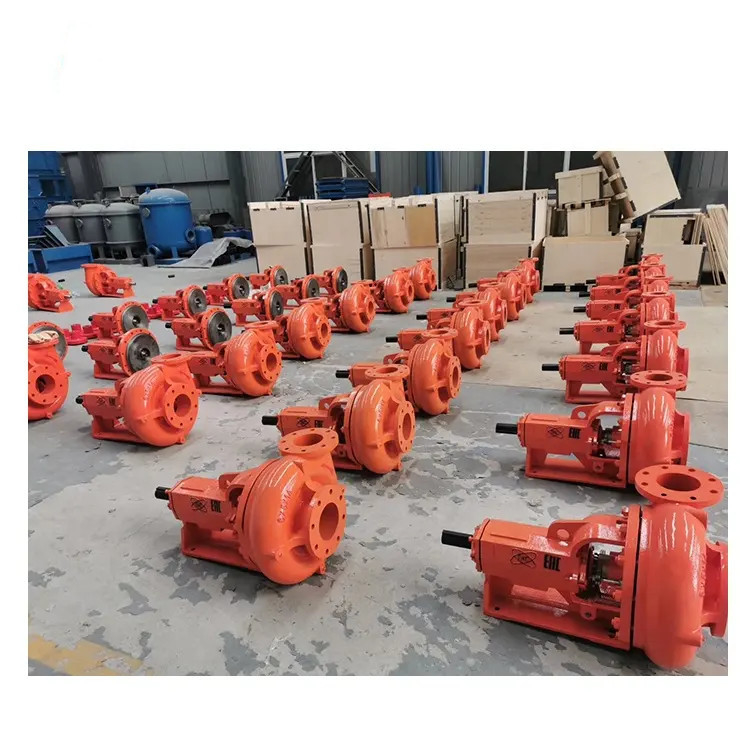

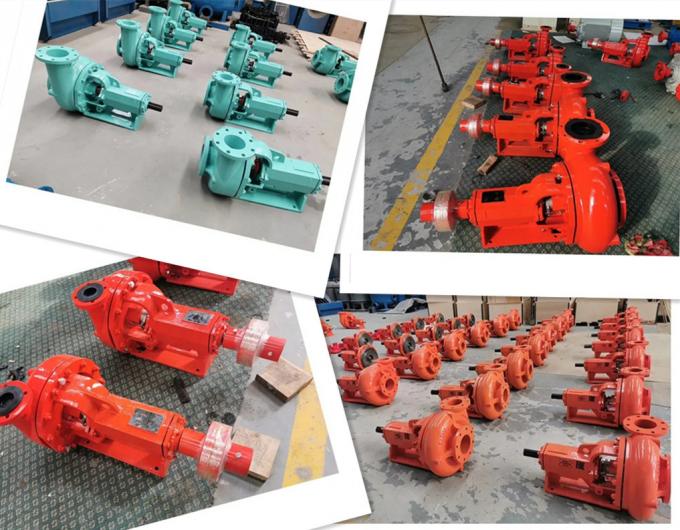

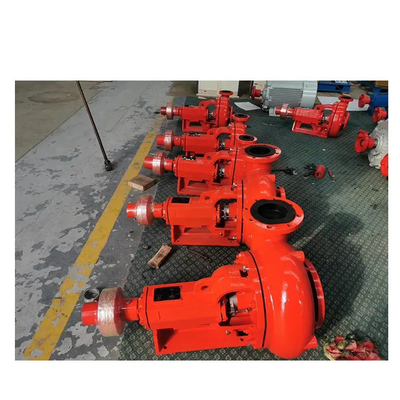

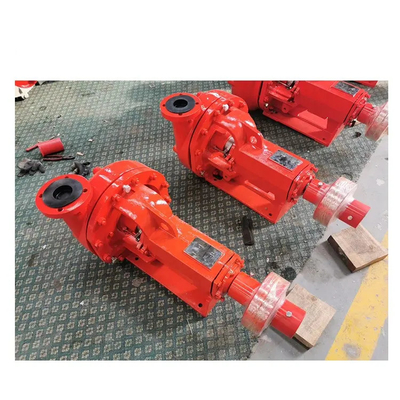

Solids Control Equipment SB Mission Centrifugal Pump Suck Mud And Sand
Description of Mission Centrifugal Pump
The SB family of pumps is designed and engineered to handle abrasive, viscous and corrosive fluids in drilling fluid or industrial slurry applications. The pump performance is matched by exceptional performance, high volume, high temperature capabilities, long service life, ease to maintenance, overall economy and greater savings. SB centrifugal pumps are currently in operation on land-based and offshore drilling rigs around the world. We will offer the best choice for the intended application, taking into consideration fluid conditions.
Applications
Drilling applications:
Mud mixing and shearing operations, desanding and desilting, degassing, supercharging, centrifugal feed, mud cooling towers, wash down.
Others
Chemical, refinery, industrial, construction and agricultural applications.
Working conditions
(Outlet):DN=2″~6″
(Flow):Q=20~400m3/h
(Head):H=12~62m
(Working temperature):T=-40°C~60°C
Please contact with us to meet you various demands.
Explanation of model
SB 6 × 5 –11
Impeller Dia(inches)
Pump outlet Dia(inches)
Pump inlet Dia(inches)
Sand pump
Technical Parameters:
| Model | Capacity | Head | Speed | Efficiency | [NPSH]r | Power | |
| (m3/h) | (m) | (r/min) | (%) | (m) | Shaft (KW) | Motor(KW) | |
| SB8x6-14 | 256 | 43 | 1450 | 64 | 4 | 46.8 | 75 |
| 320 | 40 | 65 | 53.63 | ||||
| 416 | 35 | 64 | 61.9 | ||||
| SB8x6-13 | 232 | 35 | 1450 | 60 | 4.5 | 36.8 | 55 |
| 290 | 33 | 64 | 40.7 | ||||
| 377 | 28 | 65 | 44.2 | ||||
| SB8x6-12 | 216 | 30 | 1450 | 61 | 4.5 | 28.9 | 45 |
| 270 | 28 | 64 | 32 | ||||
| 351 | 26 | 67 | 37.1 | ||||
| SB8x6-14I | 160 | 43 | 1450 | 61 | 3.2 | 30.7 | 55 |
| 200 | 40 | 62 | 35.1 | ||||
| 260 | 33 | 51 | 38.3 | ||||
| SB8x6-13I | 144 | 37 | 1450 | 57 | 3 | 25.4 | 45 |
| 180 | 34 | 60 | 27.8 | ||||
| 230 | 29 | 55 | 33.6 | ||||
| SB8x6-12I | 128 | 32 | 1450 | 57 | 3 | 19.6 | 30 |
| 160 | 30 | 60 | 22 | ||||
| 208 | 25 | 57 | 24.8 | ||||
| SB6x5-14 | 160 | 43 | 1450 | 61 | 3.2 | 30.7 | 55 |
| 200 | 40 | 62 | 35.1 | ||||
| 260 | 33 | 51 | 38.3 | ||||
| SB6x5-13 | 144 | 37 | 1450 | 57 | 3 | 25.4 | 45 |
| 180 | 34 | 60 | 27.8 | ||||
| 234 | 29 | 55 | 33.6 | ||||
| SB6x5-12 | 128 | 32 | 1450 | 57 | 3 | 19.6 | 30 |
| 160 | 30 | 60 | 22 | ||||
| 208 | 25 | 57 | 24.8 | ||||
| SB6x5-11 | 160 | 23 | 1450 | 59 | 2.5 | 17 | 30 |
| 200 | 21 | 62 | 18.5 | ||||
| 260 | 20 | 62 | 22.8 | ||||
| SB6x5-9 | 128 | 13 | 1450 | 55 | 3 | 8.2 | 15 |
| 160 | 12 | 58 | 9.02 | ||||
| 208 | 10 | 59 | 9.6 | ||||
| SB5x4-14 | 96 | 43 | 1450 | 51 | 4.6 | 22 | 37 |
| 120 | 40 | 56 | 23.3 | ||||
| 156 | 34 | 57 | 25.3 | ||||
| SB5x4-13 | 72 | 42 | 1450 | 53 | 4.5 | 15.5 | 30 |
| 90 | 40 | 56 | 175 | ||||
| 117 | 37 | 60 | 19.6 | ||||
| SB5x4-12 | 72 | 32 | 1450 | 56 | 4.5 | 11.2 | 22 |
| 90 | 30 | 56 | 13.1 | ||||
| 117 | 27 | 55 | 15.6 | ||||
| SB5x4-11 | 72 | 26 | 1450 | 55 | 4.5 | 9.3 | 18.5 |
| 90 | 24 | 56 | 10.5 | ||||
| 117 | 21 | 53 | 12.6 | ||||
| SB5x4-10 | 68 | 24 | 1450 | 56 | 4.2 | 7.9 | 15 |
| 85 | 20 | 56 | 8.4 | ||||
| 110.5 | 15 | 40 | 11.2 | ||||
| SB5x4-9 | 64 | 23 | 1450 | 56 | 4.5 | 7.2 | 15 |
| 80 | 19.5 | 54 | 7.9 | ||||
| 104 | 16 | 47 | 9.6 | ||||
| SB4x3-13 | 40 | 42 | 1450 | 46 | 4.5 | 9.9 | 18.5 |
| 50 | 40 | 48 | 11.3 | ||||
| 65 | 36 | 53 | 12 | ||||
| SB4x3-12 | 36 | 32 | 1450 | 46 | 4 | 6.8 | 15 |
| 45 | 30 | 47 | 7.8 | ||||
| 58.5 | 27 | 51 | 8.4 | ||||
| SB4x3-11 | 40 | 26 | 1450 | 46 | 4 | 6.1 | 11 |
| 45 | 24 | 46 | 6.4 | ||||
| 57 | 21 | 49 | 6.7 | ||||
| SB3x2-13 | 20 | 37 | 1450 | 39 | 3 | 5.2 | 11 |
| 25 | 35 | 40 | 5.9 | ||||
| 32.5 | 31 | 39 | 7 | ||||
| SB3x2-12 | 18.4 | 34 | 1450 | 39 | 3 | 4.4 | 7.5 |
| 23 | 29 | 39 | 5.1 | ||||
| 30 | 23 | 42 | 5.6 | ||||
| SB3x2-11 | 16 | 25 | 1450 | 38 | 3 | 2.9 | 5.5 |
| 20 | 23 | 39 | 3.2 | ||||
| 26 | 20 | 38 | 3.7 | ||||
