Product Details:
|
Condition: | New | Transport Package: | Customized |
---|---|---|---|
High Light: | Drilling Rig Swivel With Spinner, PSL1 Standard Drilling Rig Spare Parts, Oilfield Swivel With Spinner |
The drilling faucet mainly consists of the following parts:
Valve: This is a key component for controlling fluids, which includes various types of valves, such as three-way valves, baffle valves, and ball valves.
Fluid control equipment: These devices are used to control the flow and pressure at the wellhead, such as misaligned cone wheels and elastic throats.
Connector: They are responsible for connecting the wellhead to the drill pipe.
Inner pipe: composed of piston, sealing gasket, valve disc, shock absorber pad, spring and other components. The piston is the core component of the faucet, and its upper end is connected to the inner pipe, while its lower end is connected to the drill pipe.
Outer pipe: composed of steel pipe body, ball gate, joint and other parts, its main function is to cooperate with other components, ensure sealing with the wellhead, and prevent mud overflow at the wellhead.
The above components work together to meet the water supply demand during the drilling process.
Model | SL135 | SL170 | SL225 | SL315 | SL450 |
Max Static Load | 1350KN | 1700KN | 2250KN | 3150KN | 4500KN |
Dynamic Load | 1000KN | 1300KN | 1600KN | 2100KN | 3200KN |
Max. Speed | 300 | 300 | 300 | 300 | 300 |
Max. Pressure | 35MPA | 35MPA | 35MPA | 35MPA | 35MPA |
Bore thru stem | 64mm | 64mm | 75mm | 75mm | 75mm |
Gooseneck Connection | 4LP | 4LP | 4LP | 4LP | 4LP |
Sub Connection | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 |
Size(mm) | 1896*660*780 | 2060*820*822 | 2296 *1010*957 | 2418*1056*1040 | 2570 *1096*1012 |
Weight(kg) | 1500 | 1700 | 2600 | 3000 | 3400 |

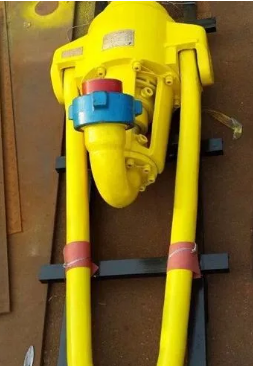

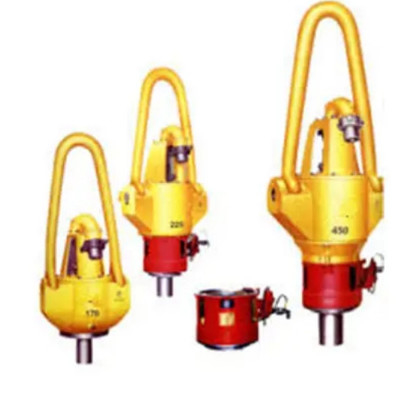

The swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, goose-neck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The swivel bail is hung on the hook. Goose-neck and rotary hose can be connected by REG thread connection or union connection.Wash-pipe packing set assembly adopts cassette structure, so it can be quickly replaced without disassembling rotary hose and goose-neck. 3LP and 4LP internal or external thread hose connection thread are available for you. We can also manufacture low temperature resistant water swivel according to customer's requirements.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland is the supplier of ECDC, PDL, ADES. We have been engaged in manufacturing and supplying oilfield equipment and rig component for more than 12 years. Should you have any items interested, just send us inquiry at anytime. We will offer you the best price with excellent quality.
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
