Product Details:
|
| Product Name: | Casing Head Spool Drilling Spool | Machine: | Drilling Tools |
|---|---|---|---|
| Working Pressure: | 2000PSI ~ 15000PSI | Weight: | 560KGS |
| Usage: | Wellhead Equipment | Process Type: | Forging Or Casting |
| Application: | Oilfield Wellhead Equipment Tool | Condition: | New |
| Color: | Red | Warranty: | 12 Months |
| High Light: | API 6A casing head spool,Topland Drilling Spool,casing head spool Drilling tools |
||

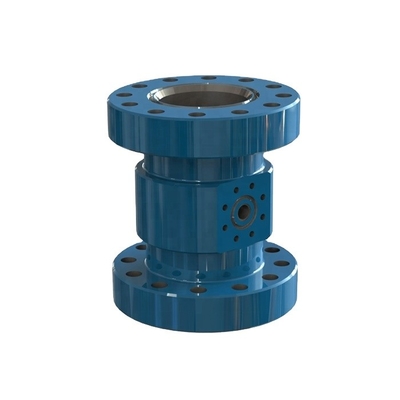

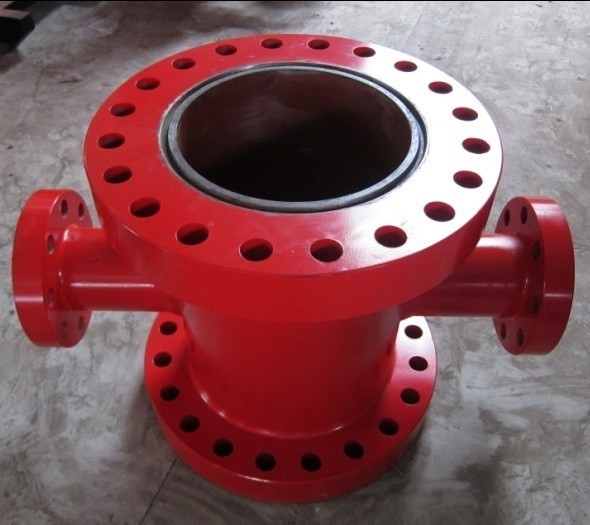

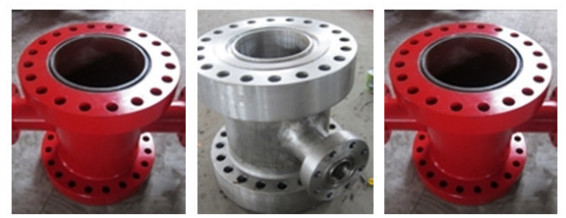

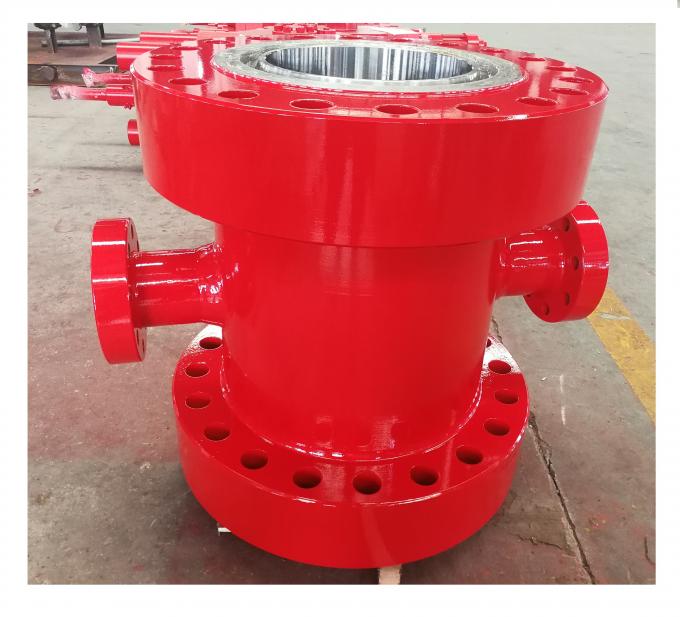

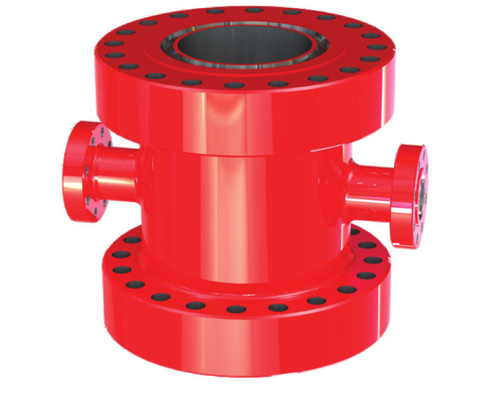

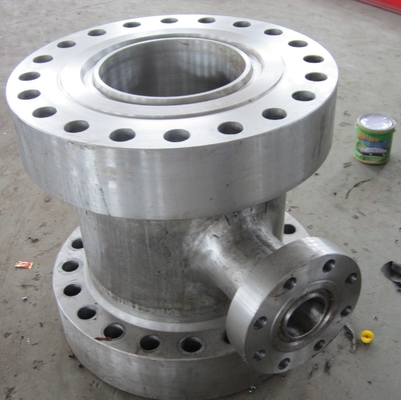

Oilfield Wellhead Equipment Casing Head Spool Drilling Spool
Description of Casing Head Spool Drilling Spool
Drilling spool and adapter can be designed according to customer's all kinds of models and sizes to meet the requirements in work site. There are three kinds of connecting models for BOP connection and outlets, including flanged, studded and clamped-in style.Gasket groove is line welded by stainless according to API Spec 6A, so as to prolong the using period and decrease the maintaining cost.
| Top flange | Surface casing | Intermediate casing | Production casing |
| 11"-35MPa | 13 3/8" | 9 5/8" | 7" |
| 5 1/2" | |||
| 11"-70MPa | 13 3/8" | 9 5/8" | 7" |
| 5 1/2" | |||
| 11"-105MPa | 20"13 3/8" | 9 5/8" | 7" |
| 5 1/2" | |||
| 13 5/8"-35MPa | 13 3/8" | 9 5/8" | 7" |
| 5 1/2" | |||
| 13 5/8"-70MPa | 13 3/8" | 9 5/8" | 7" |
| 9 5/8" | |||
| 13 5/8"-105MPa | 20" | 13 3/8" | 7" |
| 5 1/2" | |||
1. Casing Head-Bottom Slip Connection Characteristics:
(1) Connect surface casing by type WD slip.
(2) Adopt type BT secondary seal structure.
(3) Accurately calculate casing string's length is not necessary.
(4) Can not be affected by surrounding environment, climate, etc.
(5) Easy, rapid, safe and reliable in installation.
Can apply to different sizes casing, such as: 30",20",13-3/8",12-1/4",9-5/8",7",5-1/2".
Can apply to different sizes casing as:13-3/8",9-5/8",7",5-1/2"etc.
2. Casing Head-Bottom thread connection
(1) Bottom of the casing head connects surface casing by various types of threads,
such as CSG,LCSG,BCSG,TM,ETC.
(2) Convenience and rapid in installation,safe and reliable in operation.
3. Casing Head-Bottom welded connection
(1) Bottom of the casing head connects surface casing by welding.
(2) There’s pressure test hole, which can test welding effect, in welding annular space.
Main Technical Parameters of Casing Head Spool Drilling Spool
