Product Details:
|
| Product Name: | YM Hydraulic Cathead | Style: | YM Series |
|---|---|---|---|
| Weight: | 80 Kg | Type:: | Swivel |
| Applicable Models: | Energy & Mining | Certification: | API 8A 8C ISO |
| Material:: | Carbon Steel | Usage: | Manual Tong |
| Processing Type: | Casting | Use: | Well Drilling |
| High Light: | YM-16 hydraulic cathead,Carbon steel Rotary Cathead,YM-10 hydraulic cathead |
||

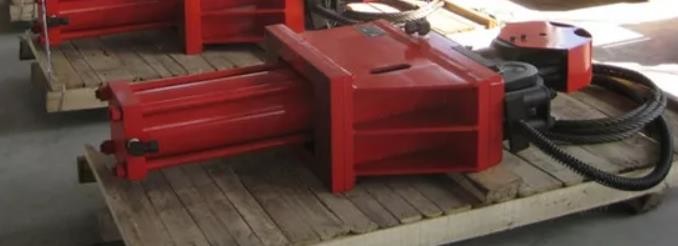

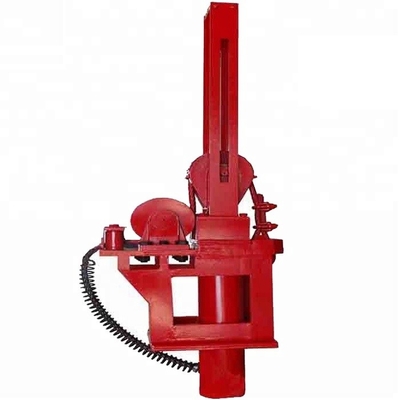

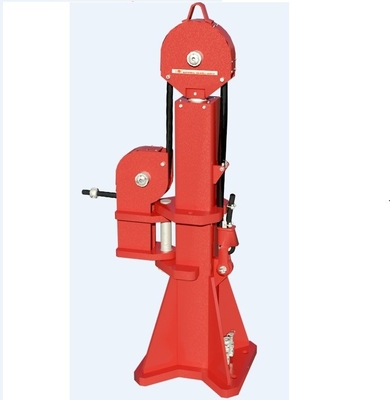

Oilfield Wellhead Equipment YM-16/YM-10 Hydraulic Cathead Rotary Cathead
Hydraulic Cathead description:
As an auxiliary equipment for petroleum drilling mechanism, YM－16 B1 Ⅱ hydraulic cathead can be used with tongs. It can mechanically loosen and tighten drilling pipes, drilling collars and casings on land or offshore drilling. By means of hydraulic power, the output torque of hydraulic cathead can be adjusted easily according to the size of pipes. Comparing with the mechanical cathead, the hydraulic cathead can reduce the working strength of drilling workers and drilling cost,ensure the workers safe effectively,so that they can carry out drilling works.
The YM hydraulic cathead is suitable to make up and break out by companying with Suspension Tong.
Operation is stable and pull may be adjusted whenever necessary.
It has its series with four specifications of 5t, 8t, 10t, 16t by pull to select.
It is designed and manufactured according to Specification for Drilling and Production Hoisting Equipment.
Technical Parameter Of Hydraulic Cathead
| Model | YM-5 | YM-8 | YM-10 | YM-16 | |
| Pressure rating | Mpa | 16 | 16 | 16 | 16 |
| psi | 2320 | 2320 | 2320 | 2320 | |
| Flow rating | L/min | 120 | 120 | 120 | 120 |
| gpm | 31.7 | 31.7 | 31.7 | 31.7 | |
| Nominal stroke | mm | 1700 | 1400 | 1650 | 1620 |
| in | 67 | 55 | 65 | 64 | |
| Pull rating | kN | 50 | 80 | 100 | 160 |
| US ton | 5.5 | 8.8 | 11 | 17.6 | |
| Size | mm | 2232*1172*650 | 2280*1280*650 | 2342*1280*650 | 2450*270*650 |
| in | 88*46*26 | 90*50*26 | 92*50*26 | 96*63*26 | |
| Weight | kg | 288 | 305 | 345 | 420 |
| lb | 635 | 673 | 761 | 926 | |
Other products we supply:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
