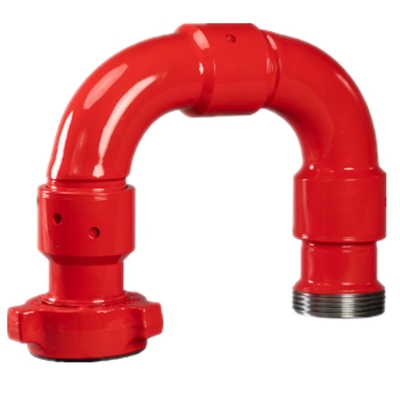

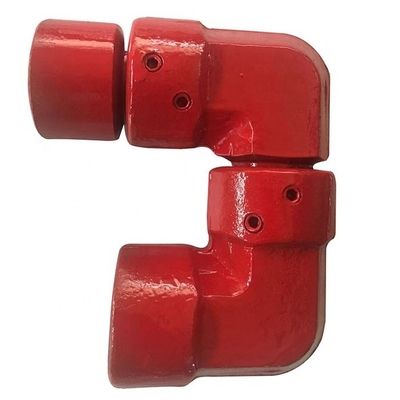

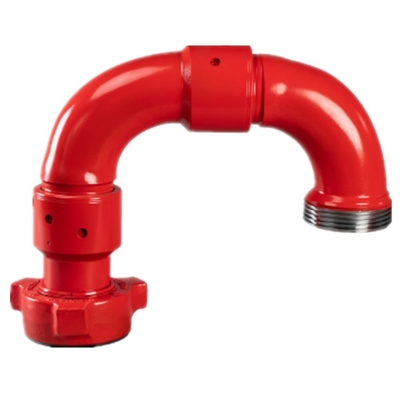

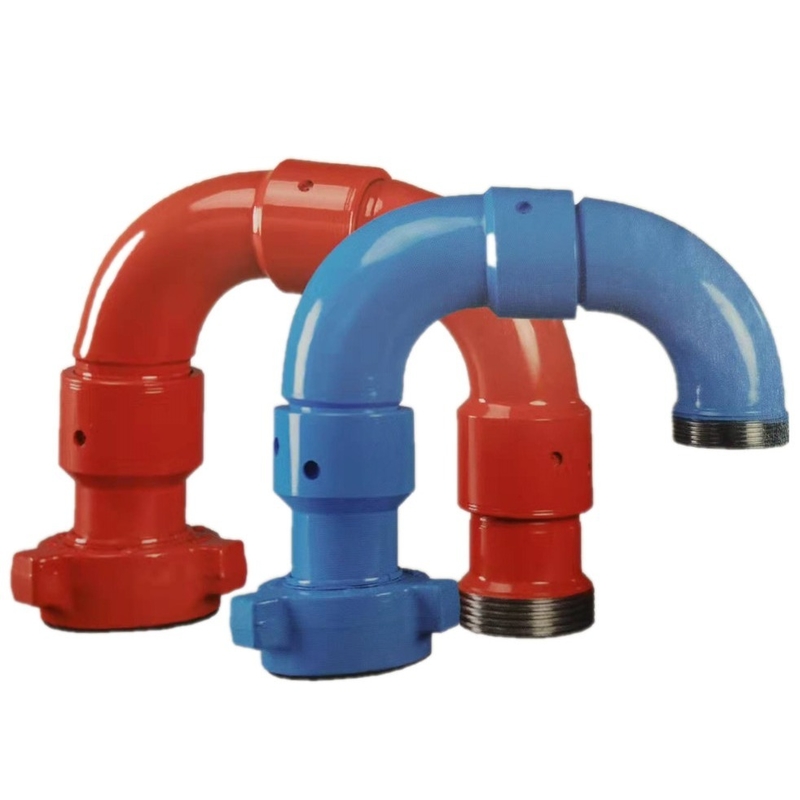

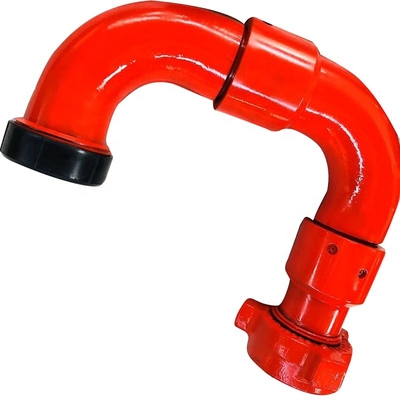

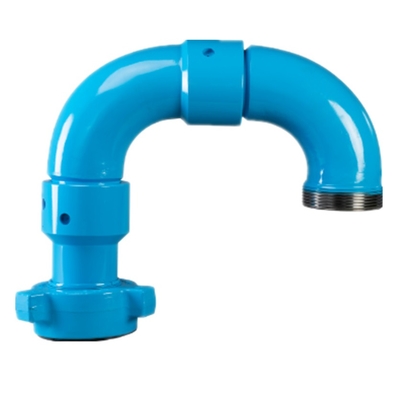

Chicksan Active Elbow Oilfield Wellhead Equipment High Pressure Swivel Joint

High Pressure Swivel Joint Oilfield Wellhead Equipment Chicksan Active Elbow

Oilfield Wellhead Equipment Swivel Joint Description:

Swivel joints are forged from TIMKEN 4715 LC alloy steel with round bore design, and are specially heat treated to ensure the durability and longevity. The design of wall thickness is based on the comprehensive analysis of weight, wear resistance and toughness. It's the best choice for protecting the ground pipeline joints in fracturing, cementing, acidizing and well testing.

Swive Joint feature of Oilfield Wellhead Equipment

- Triple step ball race design increases the wall thickness of vital part and enhances the intensity without increasing swivel joint weight.
- The case and flow path hardness can reach HRC58-62, and core strength can reach HRC28-34 to ensure wear resistance, fatigue strength and
toughness.
- The proven metal frame packing design ensures the sealing reliability.
- Adopt special forming process, the 3”1502 swivels enable to pass a 63mm ball. Ensure the unrestrictive flow path and reduce the resistance.

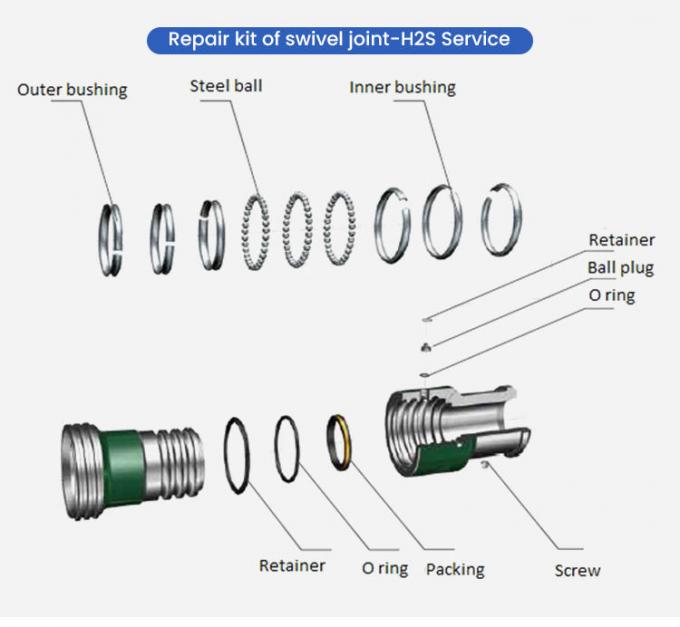

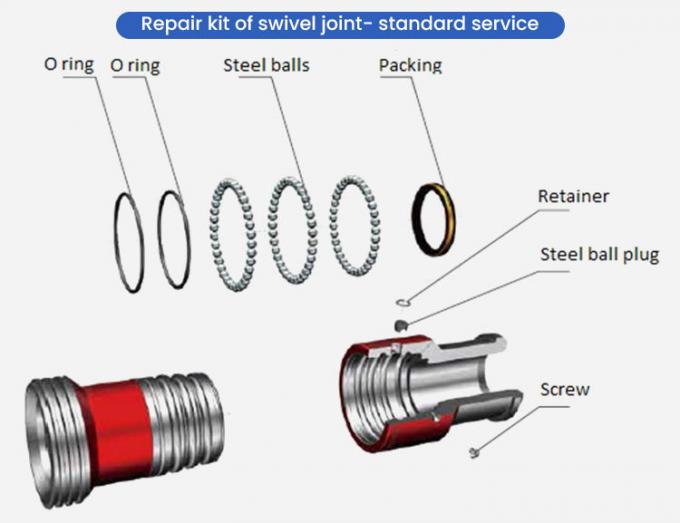

- Easy maintenance: Our chiksan swivel joints are designed for easy assembly and disassembly. Repair kits are available if necessary.

- Easy to replace: standard union connection allows for easy replacement

- Structure and appearance: smooth, round bore design minimizes turbulence and pressure drop, long radius and stepped elbows extend durability and service life.

Available:

1. Cold Working Pressure (psi) : 6,000 ~ 20,000

2. Nominal Size (inch) : 2 ~ 4

3. End Connection: Fig 602, Fig 1002, Fig 1502, Fig 2202 or Line Pipe Thread

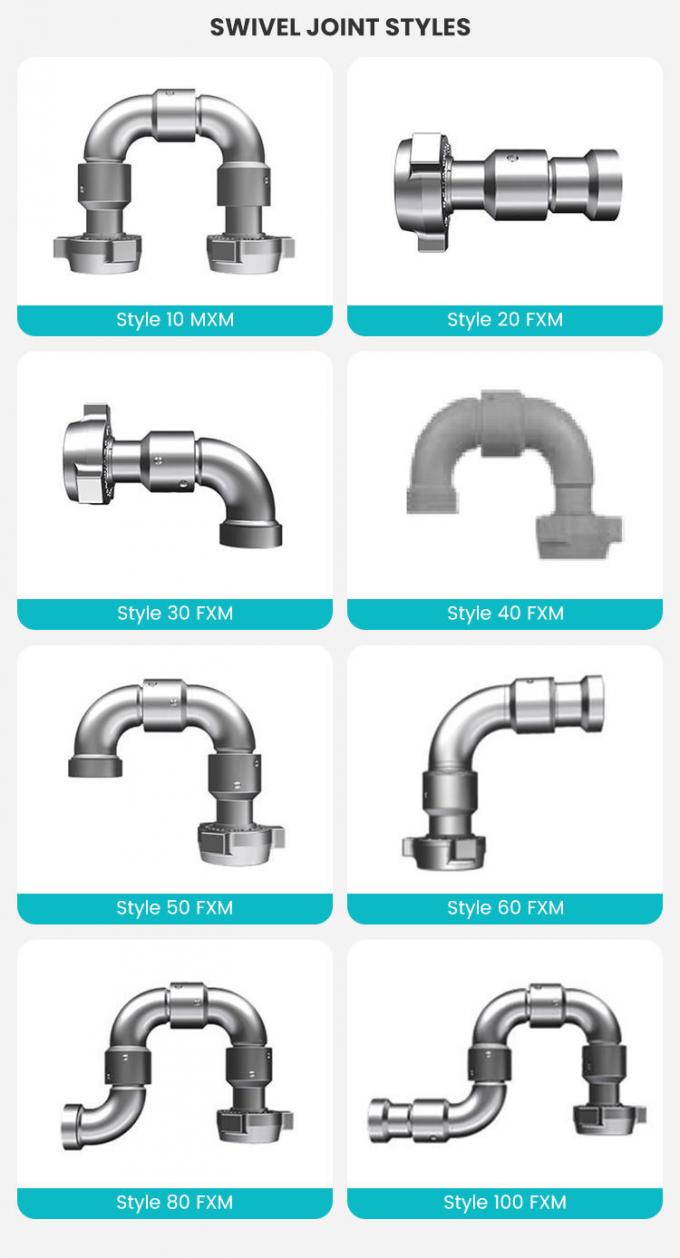

4. Style: 10, 20, 30, 40, 50, 60, 70, 80, 100

Swive Joint Technical Parameter of Oilfield Wellhead Equipment

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
