Product Details:
|
| Product Name: | Tubing & Casing Hanger | Material: | Carbon Steel, Alloy Steel, Stainless Steel |
|---|---|---|---|
| Working Pressure: | 2000 Psi-20000PSI | Specification Level: | PSL1,PSL2,PSL3,PSL3G,PSL4 |
| Working Temprature: | K-V(-60℃-250℃) | Machine Type: | Drilling Equipment |
| Processing Type: | Forging | Color: | OEM |
| High Light: | API 6A Oilfield Wellhead Equipment,Tubing Casing Hanger,Topland Oilfield Wellhead Equipment |
||
API 6A Forged Tubing And Casing Hanger Oilfield Wellhead Equipment Tools
Oilfield Wellhead Equipment Tubing & Casing Hanger Description:

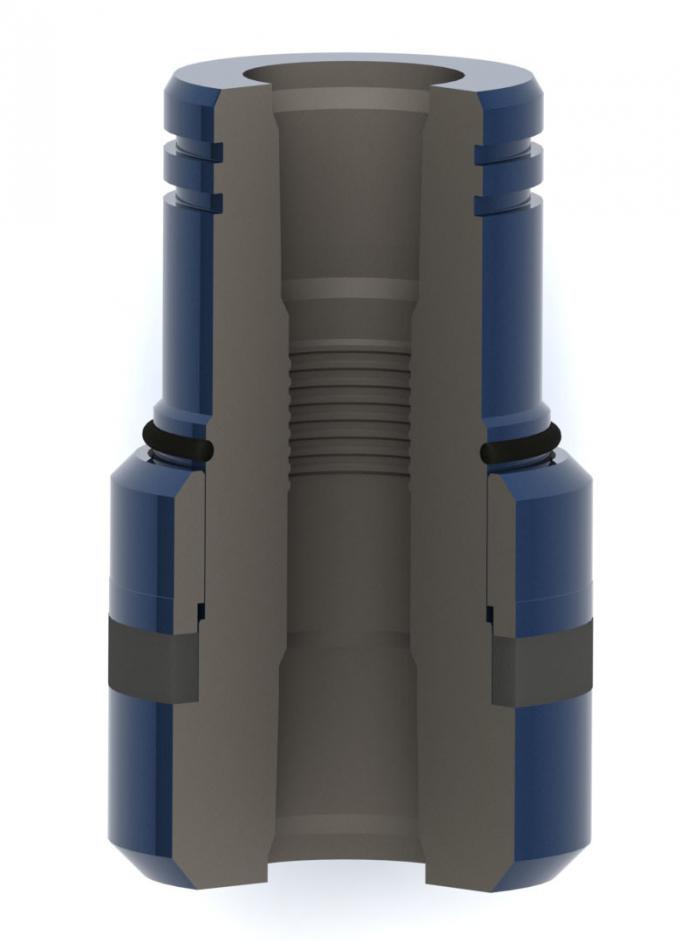

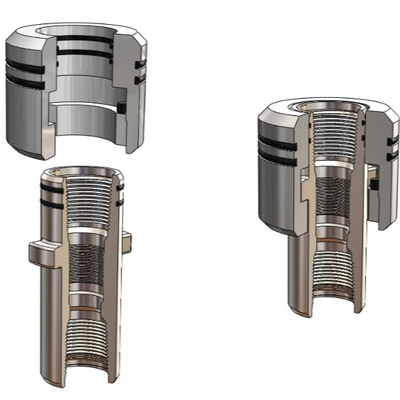

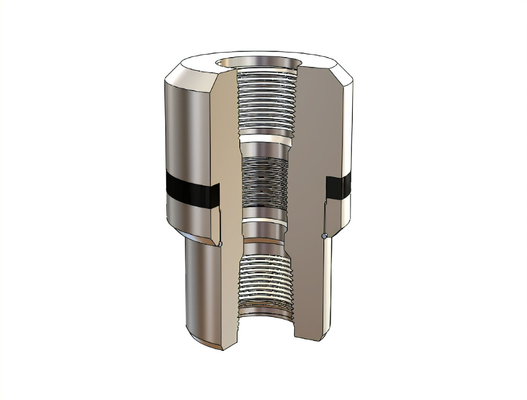

Tubing hanger is a mandrel type hanger with an extended neck that has been prepared to receive "T"configuration seals.The seal can be energized by injecting the seal compound through inject port in the adapter and the hanger pack-energized by means of lock screws in the tubing head.
It has penetrating hole for cabling,which provide the convenience to connect the control line in the wellhead with console.
These hangers are available in all tubing sizes and are used in "S" or "SL" all purpose heads.
| Product Name | Tubing hanger(Mandrel-type) |
| Working Pressure | 5000 ~10000psi |
| Size | 7-1/16“&13-5/8"&11” |
| Working Medium | oil,natural gas,mud and gas containing H2S,CO2 |
| Working Temperature | -46°C~121°C(Class LU) |
| Material Class | AA,BB,CC,DD,EE,FF,HH |
| Specification level | PSL1-3 |
| Bowl Size | Tubing Size | Working Press. |
Product Specification Level |
Material Class |
| 7” | 2.3/8” ~ 4.1/2” | 3K ~15K | PSL 1 ~ PSL 3 | AA, DD, EE, FF |
| 11” | 3.1/2” ~ 7” | 3K ~15K | PSL 1 ~ PSL 3 | AA, DD, EE, FF |

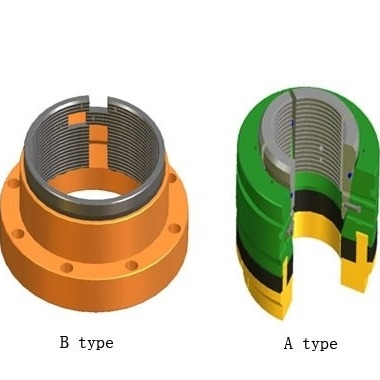

Casing hanger is a assembly which can supports the casing string when it is used in the wellhead. The casing hanger can assure the casing string is correctly located and generally incorporates a sealing device or system to isolate the casing annulus from upper wellhead components.

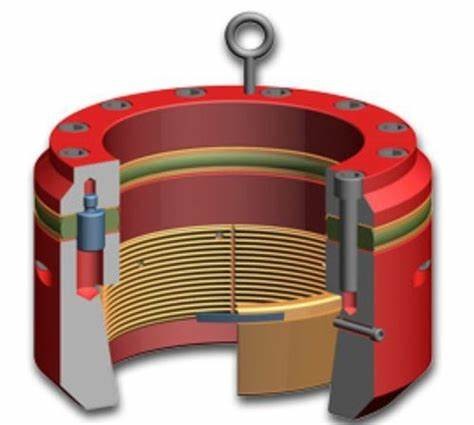

Casing hangers are devices that allow casing to be set in the well bore during the drilling phase of an oil or gas well. There are two basic designs of casing hanger, slip-type or mandrel. The slip-type is the conventional and most commonly used. The mandrel-type is normally used when special needs arise during the building of the well. Both allow for the Tens of Thousands of pounds in weight of the casing string weight to be transferred from the of the drilling rig to the load shoulder in a casing head or spool.
