Product Details:
|
| Product Name: | API-6A Oilfield Casing Head Spool | Keywords: | Casing Head Spool |
|---|---|---|---|
| Material: | AISI4130 | Processing: | Forged |
| Type: | Casing Spool | Size: | 7"--20"Casing Head |
| Standard Carried: | API Spec 6A | Application: | Wellhead Christmas Tree |
| High Light: | Well Control Oilfield Wellhead Equipment,Topland casing head spool,Oilfield Wellhead Equipment AISI4130 |
||

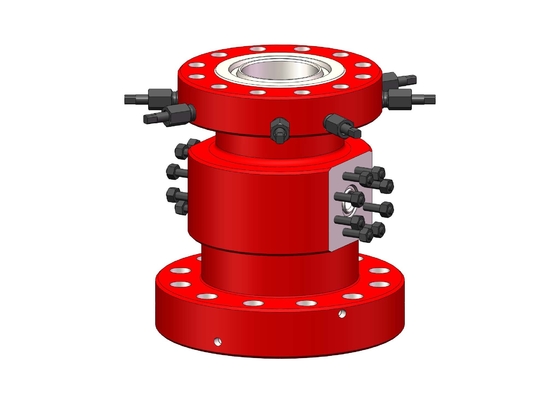

Well Control Casing Head Spool for Oilfield Wellhead Equipment
Features of Casing Head Spool for Oilfield Wellhead Equipment
1. Top connection are API 6A flanged, and the flanges are provided with locking bolts.
2. Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.
3. Structural type of the matched casing hanger: slip and mandrel.
4. Outlet connection can be thread, bolted flange.
5. Bottom connection can be threaded, welded or slip.
| Standard Carried | API Spec 6A |
| Nominal Bore | 7"--20"Casing head |
| Rated Working Pressure | 2000 psi ~ 20000 psi |
| Material Class | AA, BB, CC, DD, EE, FF |
| Material | Alloy or AISI410 |
| Connection Type | Flanged or Studded |
| Type | Casing spool |
| Application | Assembly & Christmas Tree |
The provided Wellhead casing spool is developed by using qualitative components under the direction of our skilled professionals. Our customers can avail from us the finest quality assortment of the casing head spool.
