Product Details:
|
| Product Name: | SG Stabbing Guide | Size: | 2 3/8''-20'' |
|---|---|---|---|
| Type: | Drill Pipe, DP,tubing,Casing | Material: | Rubber/polyurethane |
| Color: | Yellow / Black | Usage: | Protect Thread |
| Weight: | 35 Kg | Processing Type: | Forging |
| High Light: | API 5CT Oilfield Wellhead Equipment,casing stabbing guide 20'',Forging Oilfield Wellhead Equipment Topland |
||

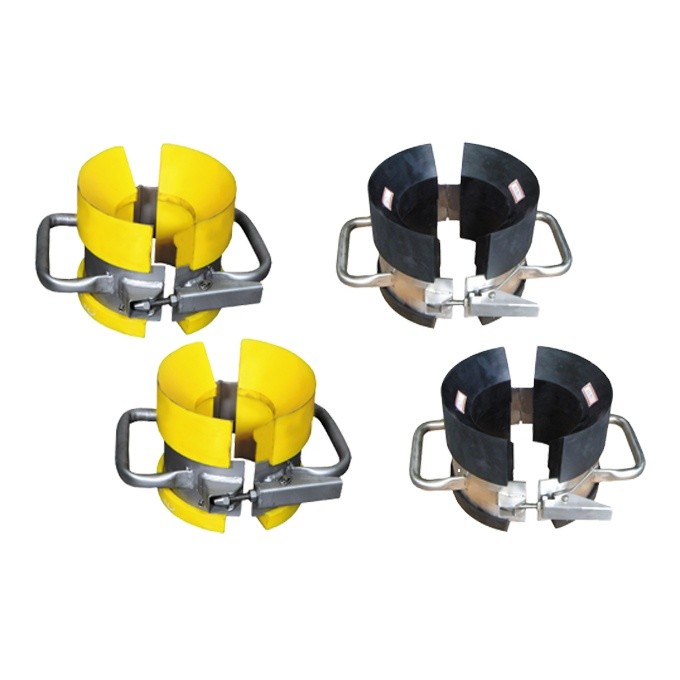

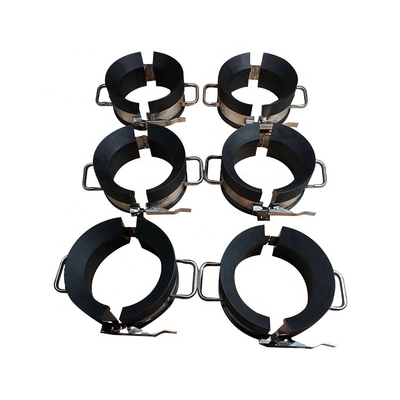

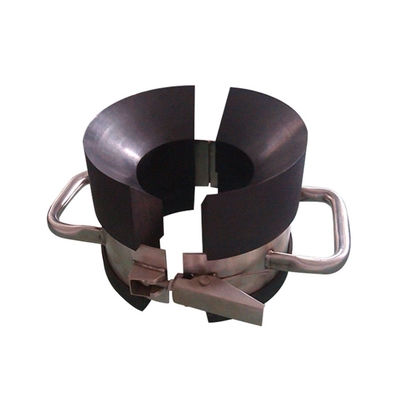

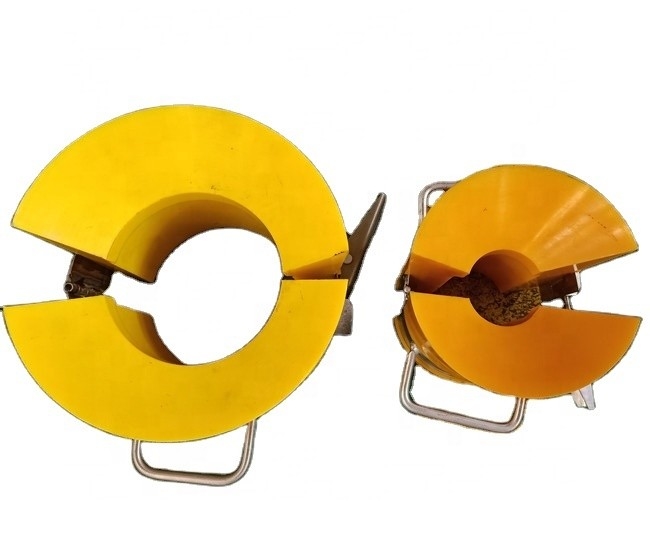

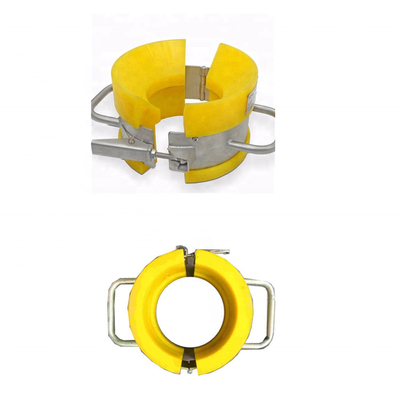

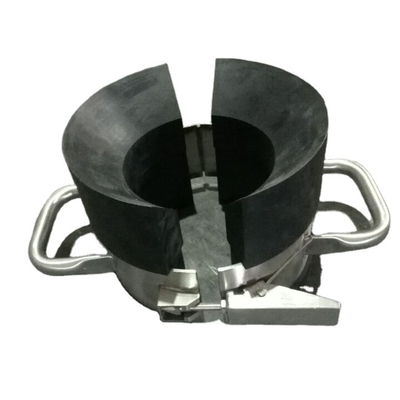

Oilfield Wellhead Equipment API 5CT Tubing Casing Stabbing Guide Protecting Pipe Connectors
Oilfield Wellhead Equipment Stabbing Guide Description:

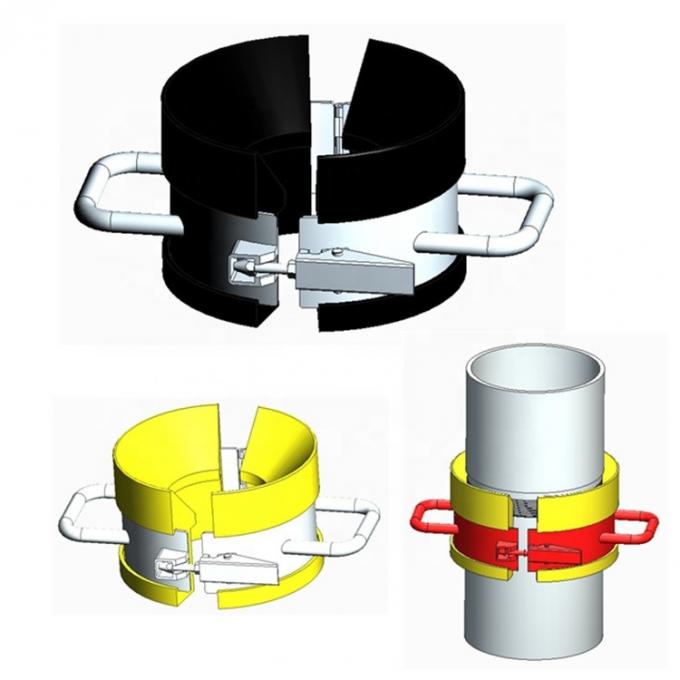

Stabbing guides are designed to prevent damage during make up and are manufactured from high-grade steel and durable urethane material, then molded to a profile designed to act as a funnel guide. Models are available for tubing, casing and drill pipe, and in your choice of heavy-duty, standard-duty, or mag-latch configurations.
Generally, stabbing guides are used during making up a string of pipe aligning pin to box threads and preventing face damage and connection failure. A stabbing guide tool is used to facilitate the make up of pipe connections comprising of a diametrally split, hinged and rigid plastics-material infundibulum of high lubricity toughness, and strength adapted to receive and guide a pin connector and having a locating socket adapted to engage a box connector. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.
Stabbing Guide Feature
The SG Model Stabbing Guide is mainly used for protecting pipe connectors when the male and female connectors for tubing and casing are stabbed during oil or natural gas well drilling and well repairing operations. This stabbing guide is simple in structure, safe and reliable, and easy for operation.
| SG Model | Applicable diameter of tubulars(in) | SG Model | Applicable diameter of tubulars(in) |
| SG 2-3/8 T | 2-3/8 TUBING | SG 7-5/8C | 7-5/8 Casing |
| SG 2-7/8 T | 2-7/8 TUBING | SG 8-5/8C | 8-5/8 Casing |
| SG 3-1/8 T | 3-1/2 TUBING | SG 9-5/8C | 9-5/8 Casing |
| SG 4 T | 4 TUBING | SG 10-3/4C | 10-3/4 Casing |
| SG 4-1/2 T | 4-1/2 TUBING | SG 11-3/4C | 11-3/4 Casing |
| SG 4-1/2 C | 4-1/2 Casing | SG 13-3/8C | 13-3/8 Casing |
| SG 5 C | 5 Casing | SG 13-5/8C | 13-5/8 Casing |
| SG 5-1/2 C | 5-1/2 Casing | SG 14C | 14 Casing |
| SG 6 C | 6 Casing | SG 16C | 16 Casing |
| SG 6-5/8C | 6-5/8 Casing | SG 18-5/8C | 18-5/8 Casing |
| SG 7C | 7 Casing | SG 20C | 20 Casing |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
