Product Details:
|
| Product Name: | Circulating Hose | Material: | Carbon Steel, Alloy Steel |
|---|---|---|---|
| Working Pressure: | 14~140MPa | Weight: | 30kg |
| Connection: | FIG 1502 | Nominal Bore: | 2 1/16"~4 1/16" |
| Key Words: | Drilling Hose | Working Temperature: | -29℃~121℃ |
| Color: | Blue Red | Applicable Condition: | H2S(meet NACE MR0175) |
| High Light: | Annular High Pressure Manifold,Oilfield Wellhead Sweep Hose Loops,API 16C Pressure Manifold Hose Loops |
||

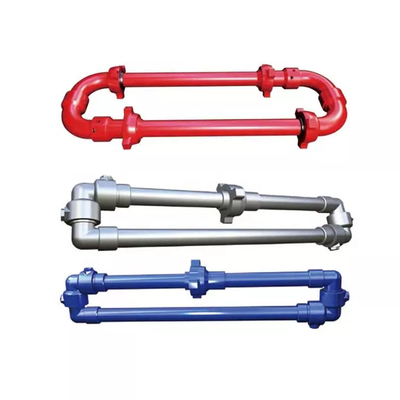

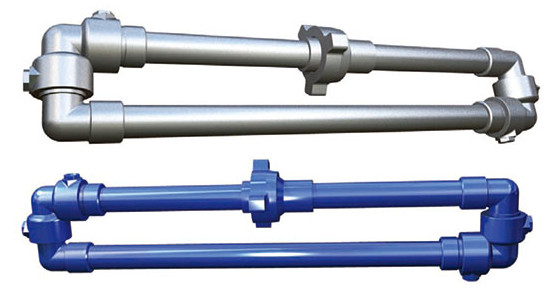

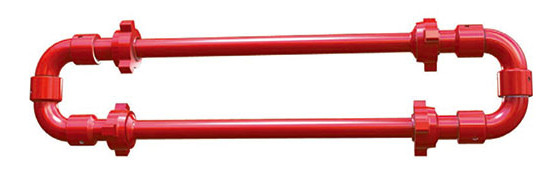

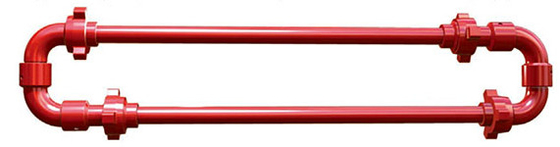

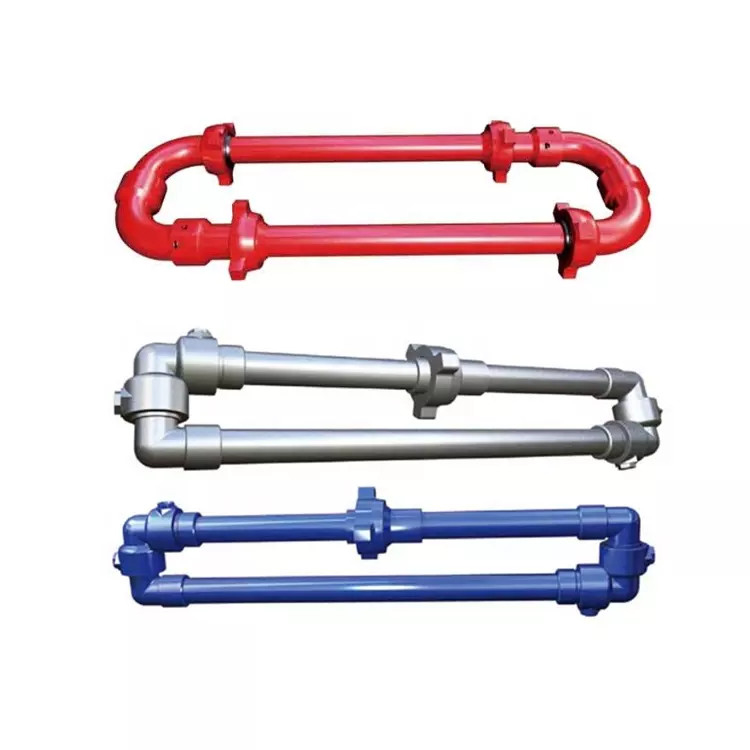

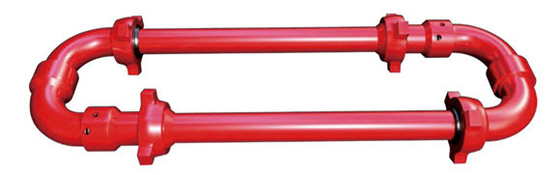

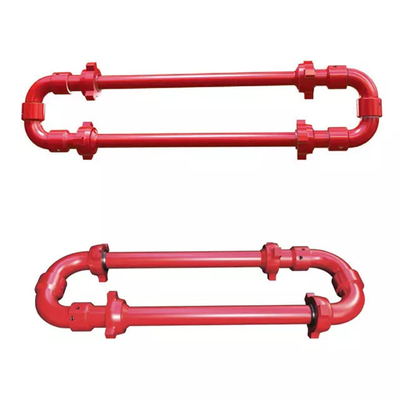

High Pressure Annular Manifold Oilfield Wellhead Equipment API 16C Sweep Hose Loops
Annular Manifold Product Descritiopn of Oilfield Wellhead Equipment
Annular manifold is suitable for oil field of high voltage discharge pipeline, oil pipeline,well test line, the cementing slurry pipeline and other working condition of high pressure conveying fluid flow. It is composed of elbow, straight pipe assembly, easy to composite, convenient transportation and storage. Have flexibility, impact resistance, resistance to vibration, the characteristics of the large flow.

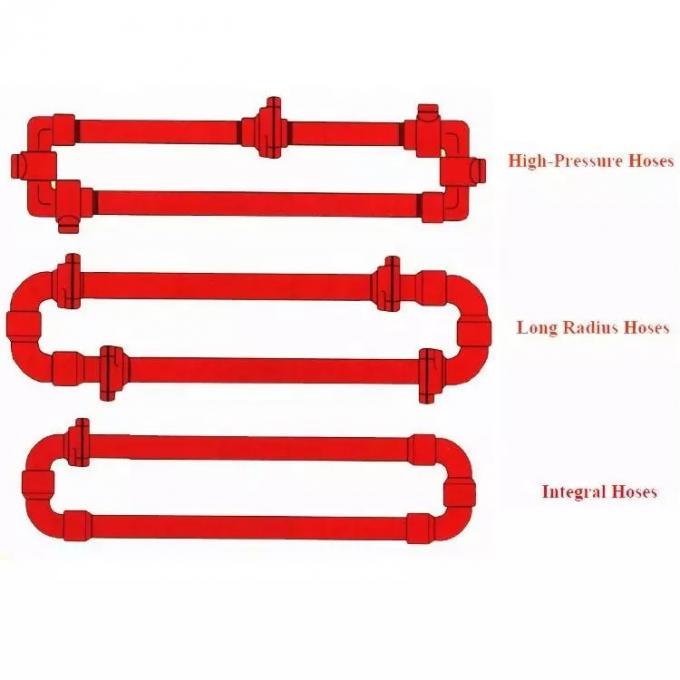

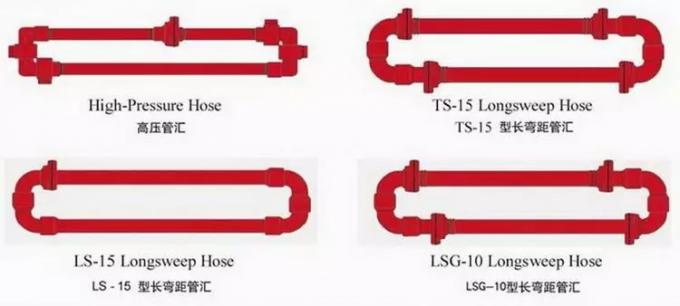

Annular manifold mainly has three forms: short radius annular manifold, long radius annular manifold, live los type circular manifold.
Size: 1”,1 1/2”,2”,3”,4”.
Working pressure:35Mpa-140Mpa(5000psi-20000psi).
The general configuration of it’s activity elbow is 50 type activity elbow, and 10 type activity elbow is another option.
| Specification | Name |
Cold working press |
Terminal connection type | Buckle model |
| Tr100×12 | Thread sealing hose loops Integral hose loops H2S proof hose loops |
42MPa | Tr100×12 | Metric system |
| Tr99×12.7 | 42MPa | Tr99×12.7 | British system | |
| 2"×42 | 42MPa | 3.8125-3Stub Acme-2G | FIG602 | |
| 2"×70 | 70MPa | 3.8125-3Stub Acme-2G | FIG1002 | |
| 2"×105 | 105MPa | 4.125-3-Acme-2G | FIG1502 | |
| 3"×42 | 42MPa | 5.375-3Stub Acme-2G | FIG602 | |
| 3"×70 | 70MPa | 5.375-4-Acme-2G | FIG1002 | |
| 3"×105 | 105MPa | 5.375-3.5-Acme-2G | FIG1502 | |
| 4"×42 | 42MPa | 6.25-3Stub Acme-2G | FIG602 | |
| 4"×70 | 70MPa | 6.25-4-Acme-2G | FIG1002 | |
| Remark:How to place an order:Integral hose loop-3"×105 -8’ (according to expanded size) | ||||
| According to users’ drawing | ||||
