Product Details:
|
| Product Name: | Casing/Tubing Head | Material Class: | AA BB CC DD EE FF |
|---|---|---|---|
| Working Temperature: | -18°C-121°C | Material: | Carbon Steel |
| Size: | 7-1/16" ~ 13-5/8" | Working Pressure: | 2000-15000 Psi |
| Connection: | FLANGE | Weight: | 50kg |
| High Light: | Forged Casing Drilling Spool,Drilling Wellhead BOP Spool,Oilfield Tree Tubing Head Assembly |
||
Casing /Tubing Drilling Spool Oilfield Wellhead Equipment API 6A Casing Head
Oilfield Wellhead Equipment Casing/Tubing Head:

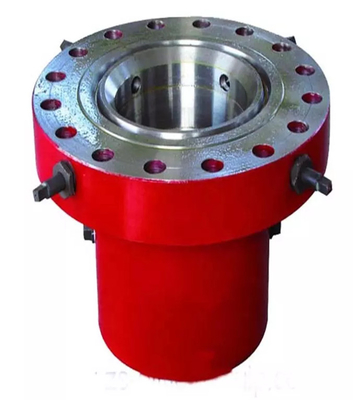

Casing heads are indispensable components used for connecting casing to wellhead assembly, which can support intermediate string and production string, seal the annular space between the casings. Casing head also can be used as a crossover connection for installation of BOP, tubing head, christmas tree and other wellhead components. Two side outlets on the casing head can be used for cement feeding, well sink monitoring, balance fluid injection and other operations.
-We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.
-Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.
| Carried standard | API Spec 6A. NACE MR0175 |
| Rated working Pressure | 2000PSI-20000PSI |
| Nominal Bore | AA,BB,CC,DD,EE,FF |
| Material class | 11”,13-5/8”,16-3/4”,20-3/4”,21-1/4” |
| Temp class | L,P,R,S,T,U,V |
| Performance Requirement | PR 1-PR2 |
| Product specification level | PSL 1-PSL4 |

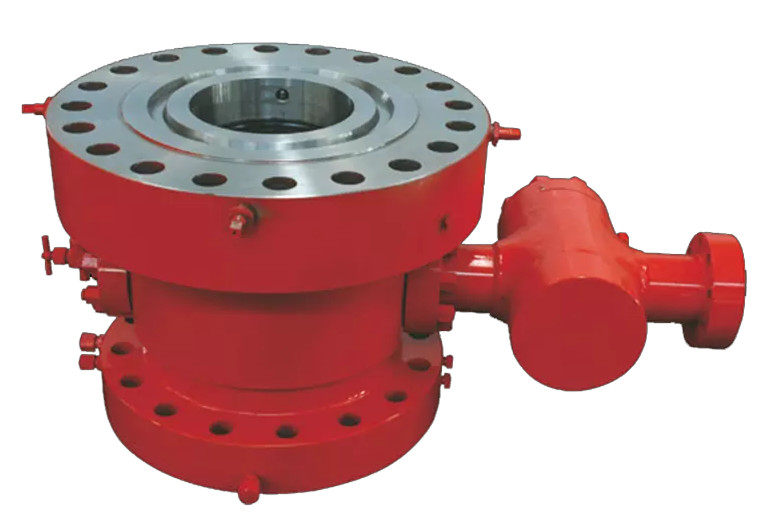

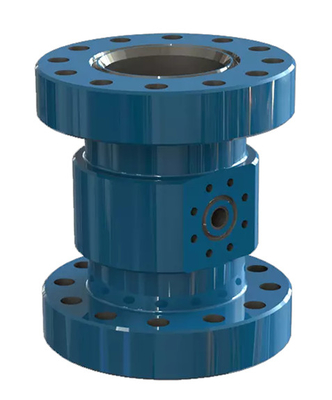

Tubing head is a spool with flanged top, flanged bottom and two side outlets. It also can be called tubing spool. Top flange is equipped with lock screws to fix tubing hanger.
-Tubing head is installed on top of casing head, which consists of body housing and tubing hanger. It can hang tubing string and seal the annular space between tubing and production casing.
-our company can manufacturer tubing head with standard structure, which includes tubing hanger installed on the cone of body housing. Tubing hanger can be tapped with BPV thread as per request.
| Carried standard | API Spec 6A,NACE MR0175 |
| Rated working pressure | 2000PSI-20000PSI |
| Nominal Bore | 7-1/16”,9”,11”,13-5/8” |
| Connection type | API 6B or 6BX flanged top & bottom |
| Material class | AA,BB,CC,DD,EE,FF |
| Temp class | L,P,R,S,T,U,V |
| Performance Requirement | PR1-PR2 |
| Product specification Level | PSL 1-PSL 4 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
