Product Details:
|
| Product Name: | G Slip-type Casing Hanger | Material: | AISI 4130 / 410 |
|---|---|---|---|
| Size: | 9" ~ 26" | Key Word: | Casing Hanger |
| Quality: | High Level | Machine Type: | Wellhead Equipment |
| Processing Type: | Forging | Condition: | New |
| High Light: | G Slip Type Casing Hanger,Oilfield Wellhead Casing Head,Oilfield Slip Type Casing Hanger |
||

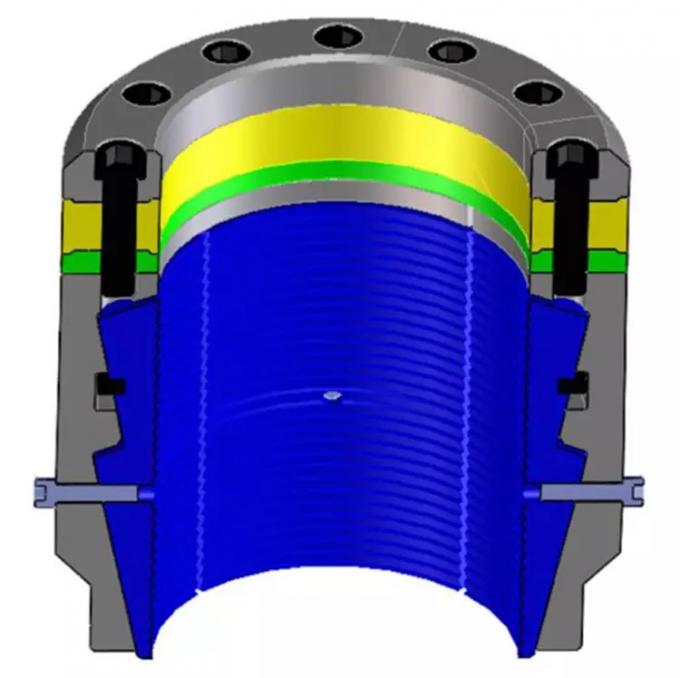

Casing Head Oilfield Wellhead Equipment Tools API 6A G Slip Type Casing Hanger
Oilfield Wellhead Equipment G Slip type casing hanger Description:

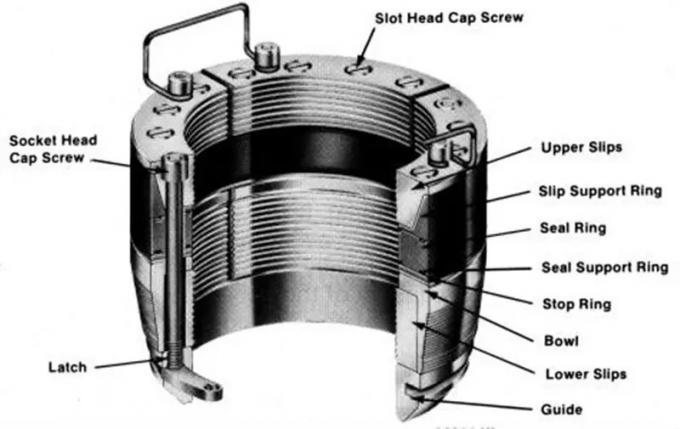

■ there are two major types of casing hangers,i.e.the threaded (mandrel) type and the slip-type.
■ the slip-type casing hanger comprises a number of models such as G.W. WD and WE.
■ the model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force.
■ the model W hangers are structured to enable the dead-weight of the casing to energize the seal to function.
■ both the model WE and model G hangers operate by energizing the seal manually.
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hanger in(mm) |
| 2000(13.8) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) | |
| 3000(20.7) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) | |
| 5000(34.5) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) | |
| 10000(69.0) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) | |
| 15000(103.5) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) | |
| 20000(138.0) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
| (280~540) | (46~103) | (139.7~508) |
