Product Details:
|
Product Name: | Sucker Rod Clamp Polished Rod Clamps 1" | Type: | Single Bolt /Double Bolts / Three Bolts |
---|---|---|---|
Working Load: | 100KN/118KN | Weight: | 5.5KG |
Machine Type: | Wellhead Equipment Tool | Usage: | Sucker Rod |
Process: | Forging | Application: | Oilfields |
Condition: | New | Color: | Red |
High Light: | API 11B Oilfield Wellhead Equipment,Oilfield Wellhead Polished Rod Clamp,100KN Sucker Rod Clamp |

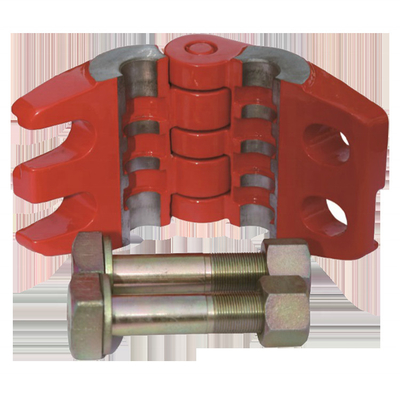

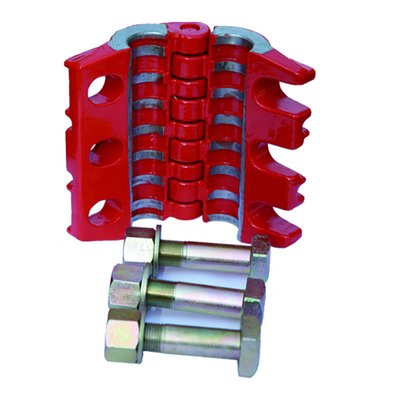

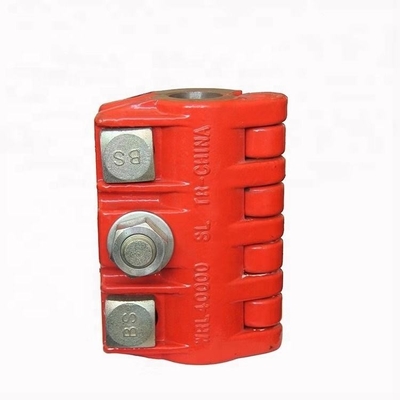

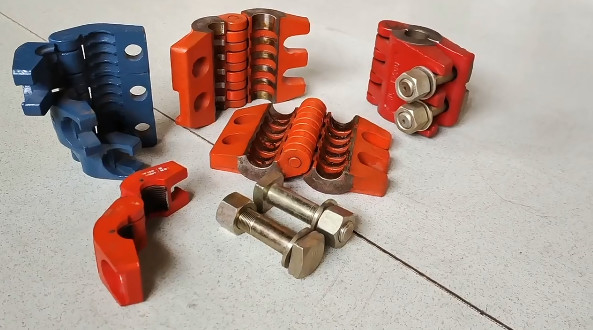

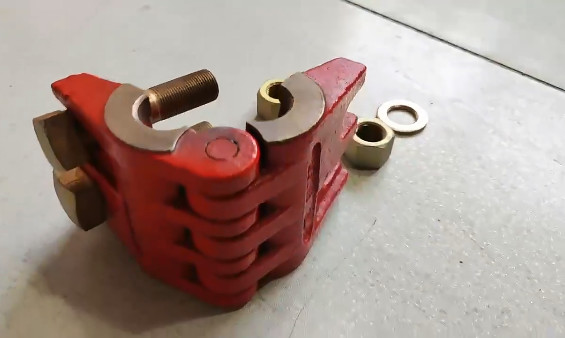

API 11B Oilfield Wellhead Equipment Polished Rod Clamp/Sucker Rod Clamp
Description of Polished Rod Clamp
Polished Rod Clamps are a high quality, high strength, yet light weight and easy to use clamp.
Available in single, double to handle every well application.
All Polished Rod Clamps are forged from high-grade, heat treated steel. Bolts are cadmium plated. Hinge pins are 4140 heat treated steel.
The clamping surface of each polished rod clamp is bored and reamed to the exact size of the polished rod. Additionally, both ends are machine-squared with the hole to prevent eccentric loading if the hanger bar is flat.
Main Technical Parameters of Oilfield Wellhead Equipment Sucker Rod Clamp
WL12000 single bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
22mm | 78.5KN | 3200N.m | 5.6Kg | |
25mm | 100KN | 5.5Kg | ||
25.4mm (1in) | 100KN | 5.5Kg | ||
28.6mm (1 1/8in) | 118KN | 5.5Kg | ||
WL16000 two bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
25.4mm (1 in) | 118KN | 1545N.m | 7.3 Kg | |
28mm | 157KN | 7.2 Kg | ||
28.6mm (1 1/8in) | 157KN | 7.2 Kg | ||
31.8mm (1 1/4in) | 157KN | 7.1 Kg | ||
32mm | 157KN | 7.1 Kg | ||
38.1mm (1 1/2in) | 178KN | 9 Kg | ||
WL18100 three bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
31.8mm (1 1/4in) | 178 KN | 1977N.m | 10.35Kg | |
32mm | 178 KN | 10.35Kg | ||
38.1mm (1 1/2in) | 178 KN | 10.2Kg |
Model | Load | Weight |
25mm | 118kN(12040kgf) | 7.3kg |
25.4mm(in) | 118kN(12040kgf) | 7.3kg |
28mm | 157kN(16020kgf) | 7.2kg |
28.6mm(11/8in) | 157kN(16020kgf) | 7.2kg |
31.8mm(11/4in) | 157kN(16020kgf) | 7.1kg |
32mm | 157kN(16020kgf) | 7.1kg |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
