Product Details:
|
| Product Name: | Chiksan Swivel Joint Fig 1502 | Type: | Style10 , 20,30 , 40, 50 , 60, 70 ,80 , 90, 100 |
|---|---|---|---|
| Performance Level: | PR2 | Working Pressure: | 42 Mpa ~ 105 Mpa |
| Machine Type: | Wellhead Equipment Tool | Connection: | 1502 Union |
| Material: | Cast Steel | Application: | Oil And Gas Water |
| Condition: | New | Color: | Red |
| High Light: | Carbon Steel Chiksan Swivel Joints,Forged Oilfield Wellhead Equipment,Fig 1502 Chiksan Swivel Joints |
||

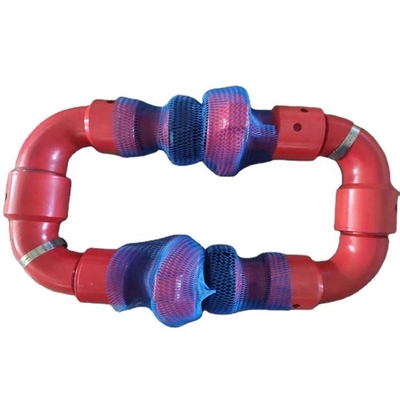

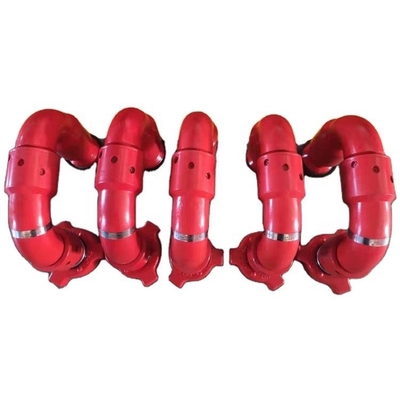

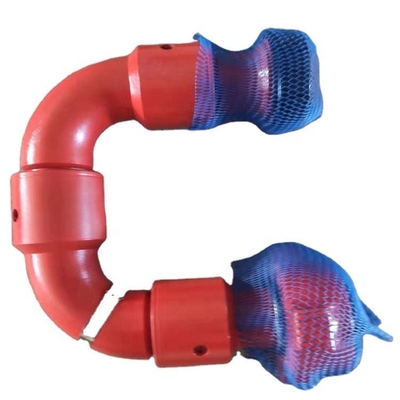

API 16C Female Male Threaded Welding Forged Carbon Steel Chicksan Swivel Joints Pipe Connections 2inch 1502

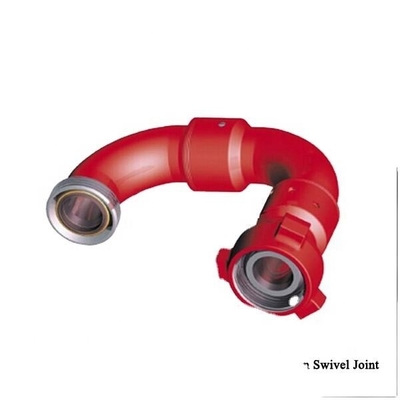

Swivel joints is a metal pipe joint with integral ball bearing, with sizes ranging from 1" to 4" and rated WP ranging from 2,000psi 一20,000psi.Various types of repair kits are available, which is suitable for normal or low temperature, or H2S environ-ments.Swivel joint can be clasified into long and short radiuss. Long radius swivel joints can minimize fluid shock,and has better performance of resistance for scouring and erosion. We also need to use short radius swivel joints for low pressure operation due to limited installation space.
1. 90 Degree swivel joint is connected with the hammer union, being characterized by the flexibility, fast tightening and disassembly, pressure-proof, sealing, convenient transportation and storage;
2.The long sweep swivel joint is designed by three lanes, which can effectively bear the heavy load and radial load to achieve the smooth pressure-bearing. The vibration of pipe will be minimized when bearing the variable loads;
3. All joint sizes are equally the same to the similar products of FMC in the well cementation and fracturing, being strong in the exchange;
4. Uniform wall thickness, long service life and smoother transportation of fluid;
5. The sealing elements are made of hydrogenated nitrile butadiene rubber, with the good sealing performance;
6. The sealing elements are equipped with the metal spray ring, as well as the relief hold. In case of the leakage, the pressure will be relieved automatically to avoid its accumulation in the lane cavity;
7. The spot maintenance of high pressure swivel joint only requires the addition of lubrication oil occasionally to guarantee the normal operation.
Main Technical Parameters of swivel joint

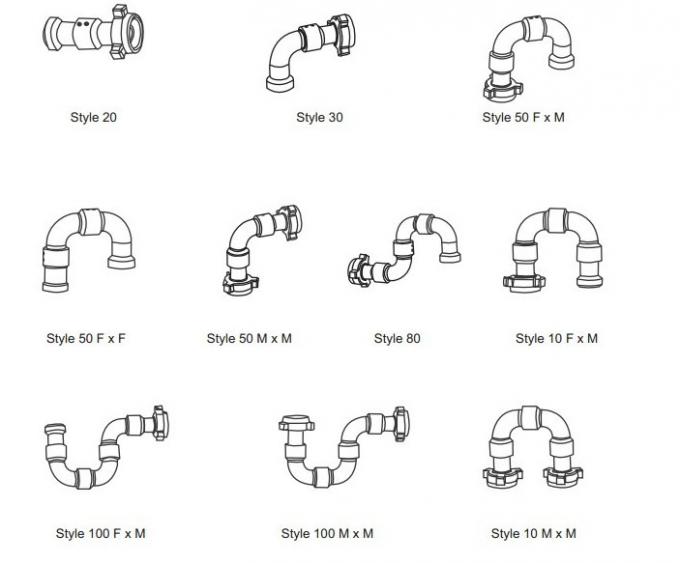

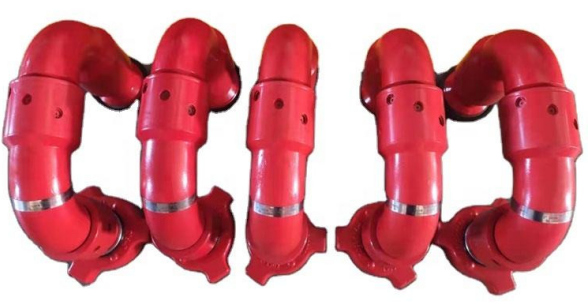

90 degree swivel joint is connected with 10 type, 20 type,30 type, 40 type, 50 type, 60 type, 70 type,80 type, 90 type, 100 type union, and common connection modes are as below:
| Short radius swivel joints | 1''x3500psi(25Mpa) | Style 10,50 | |
| 1"-1/2x6000psi(42Mpa) | Style 10,50 | LP Female Thread | |
| 1"-1/2x10000psi(70Mpa) | Style 10,50 | LP Female Thread | |
| 2"x6000psi(42Mpa) | Style 10,50 | LP Female Thread | |
| 2"x10000psi(70Mpa) | Style 10,50 | LP Female Thread | |
| 1-1/2"Long radius swivel joints | 1"-1/2x10000psi(70Mpa) | Style 10 | LP Female |
| 1"-1/2x10000psi(70Mpa) | Style 50 | LP Female | |
| 2"x10000psi(70Mpa) | Style 10,20,50 | LP or TBG Female | |
| 2"x10000psi(70Mpa) | Style 10,50 | MxF(Tr100x12.7) | |
| 2"x10000psi(70Mpa) | Style 10,50 | MxF(Tr100x12) | |
| 2"x10000psi(70Mpa) | Style 10,50,80,100 | MxF,MxM,FxF |
Each swivel joint is accompanied with a maintenance package. The maintenance package can also be ordered independently. Parts name and qty of long sweep swivel joint maintenance package
| Name of maintenance package | 10 type | 20 type | 30 type | 50 type | 80 type | 100 type |
| (Qty) | (Qty) | (Qty) | (Qty) | (Qty) | (Qty) | |
| union sealing ring | 3 | 1 | 1 | 2 | 3 | 4 |
| Spring rand | ||||||
| Gland packing | ||||||
| Circlip for hole | ||||||
| Steel ball plug | ||||||
| Steel ball | ||||||
| Greasy blockage |
