Product Details:
|
| Product Name: | Plug Valve Repair Kits | Material: | Steel+rubber |
|---|---|---|---|
| Size: | 20*30*20 | Quality: | High Level |
| Weight: | 2 Kg | Machine Type: | Drilling Tool |
| Processing Type: | Forging | Condition: | New |
| High Light: | API 6A Plug Valve Repair Kits,Oilfield Wellhead Plug Valve Repair Kits,Steel Rubber Oilfield Wellhead Equipment |
||

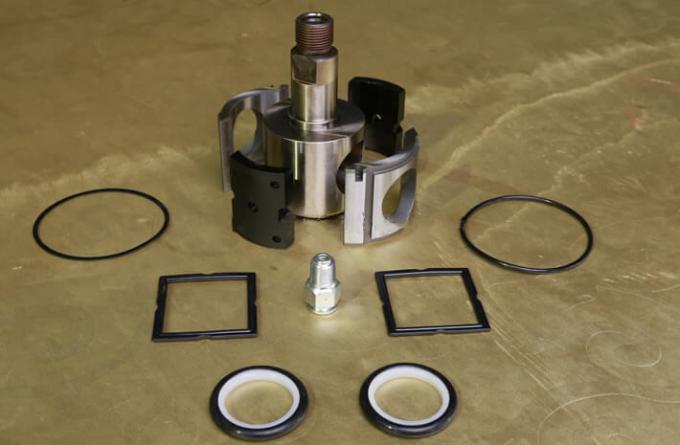

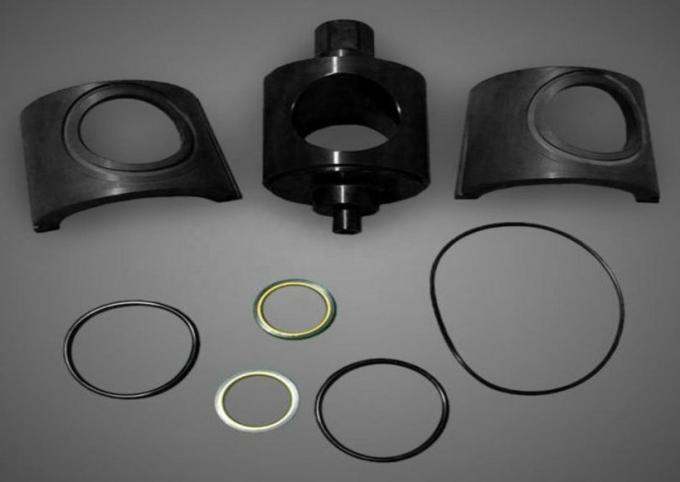

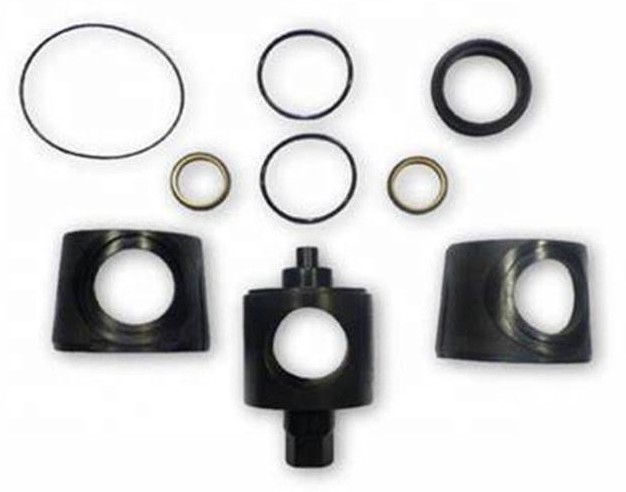

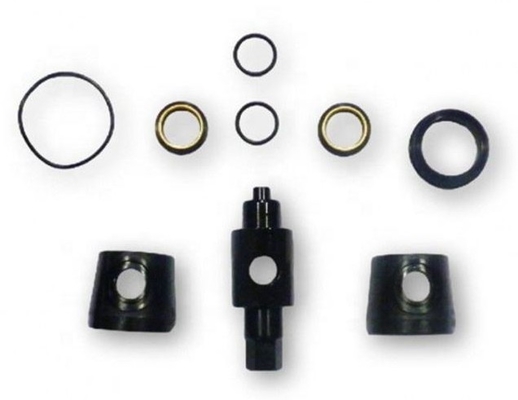

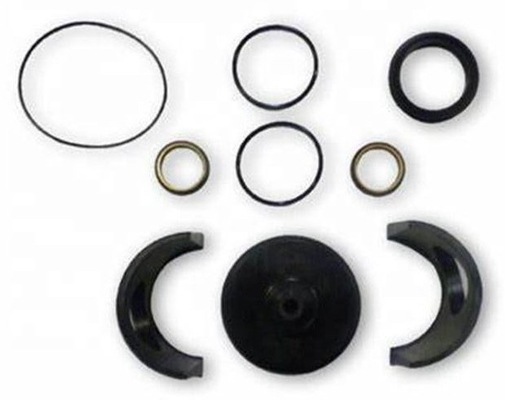

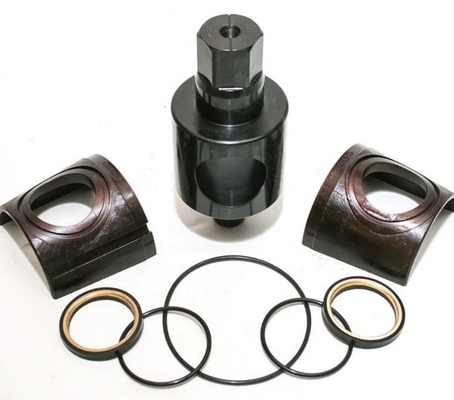

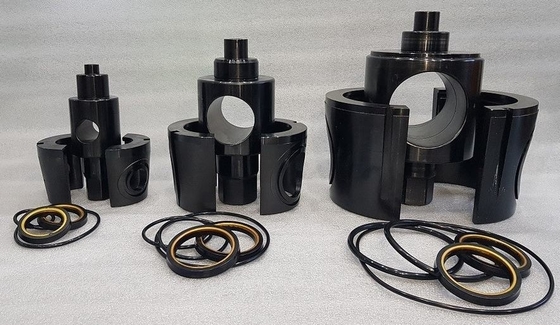

Oilfield Wellhead Equipment Tools API 6A Plug Valve Repair Kits
Plug Valve Repair Kit description of Oilfield Wellhead Equipment Tools:
Plug Valve Repair Kit Interchangeability
Plug valve repair kits can be provided for standard service, or low temperature and sour gas condition. These repair kits are replaceable and interchangeable for Weir SPM™, FMC™ 2” and 3” DR plug Valve, which is including plug, seal segment, side segment, elastomer seals, and grease fittings
Specification Size:
1” Plug Valve Low Torque (1 x 1) Male x Female FIG1502
1” Plug Valve Low Torque (1 x 2) Male x Female FIG1502
2” Plug Valve Low Torque (2 x 2) Male x Female FIG1502
3” Plug Valve Low Torque (3 x 3) Male x Female FIG1502
Cold working pressures: 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa (15000Psi).
Connection type: hammer union (Fig.602, Fig.1002, Fig.1502 MXM, MXF, and FXF), LP female thread and LP external thread and the plug valve with bottom base can be designed upon the client’s request.
| Name | 1"×2"plug valve | 2"×2"plug valve | 3"×3"plug valve | ||||||
| Qty. | 105 Mpa | 70 Mpa | 42 Mpa | 105 Mpa | 70 Mpa | 42 Mpa | 105 Mpa | 70 Mpa | 42 Mpa |
| 15000 psi | 10000psi | 6000 psi | 15000 psi | 10000 psi | 6000 psi | 15000 psi | 10000 psi | 6000 psi | |
| Side segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Seal segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Inner seal and Outer seal | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Lock nut, Hex | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for body cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Nylon backup ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease Retainer Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease fitting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
