Product Details:
|
| Product Name: | Chicksan Swivel Joint | Material: | Tungsten Carbide & Steel |
|---|---|---|---|
| Quality: | High Level | Weight: | 18 Kg |
| Machine Type: | Drilling Tool | Condition: | New |
| Warranty: | 12 Months | Packing: | Wooden Case |
| High Light: | Hydraulic Swivel Rotary Center Joint,Oilfield Wellhead Center Joint,Short Radius Swivel Joint |
||

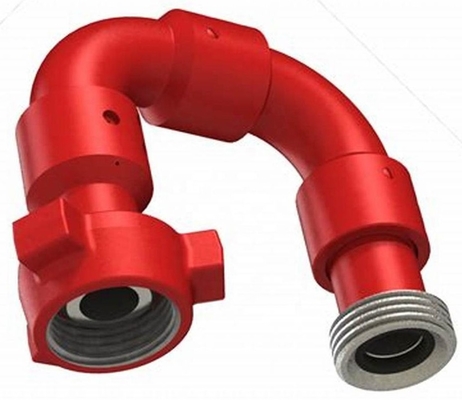

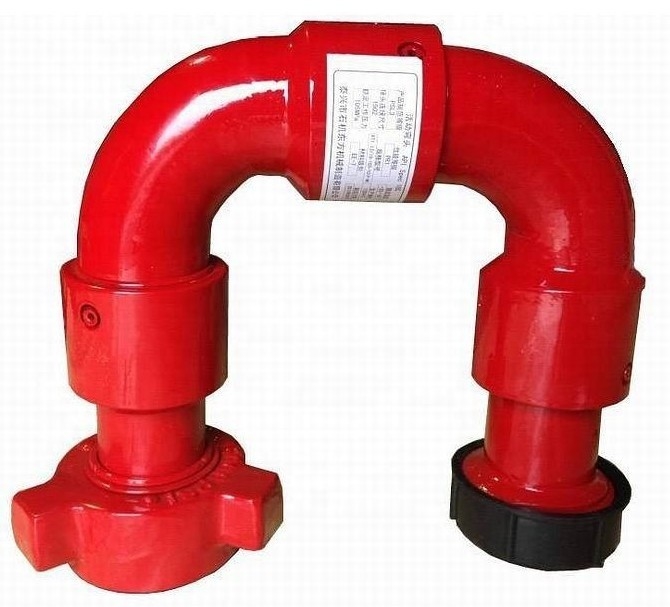

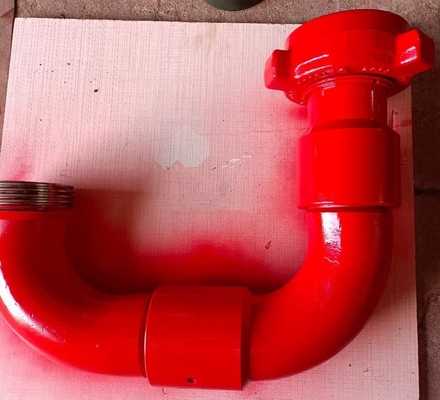

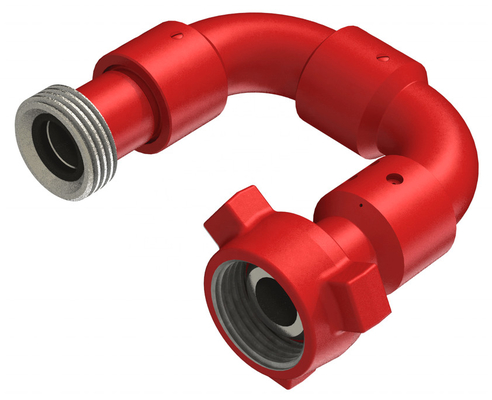

Hydraulic Swivel Rotary Center Joint Oilfield Wellhead Tools Chiksan Short Radius Swivel Joint
Chiksan Swivel Joint description of Oilfield Wellhead Equipment Tools:
Chicksan Swivel Joint is a kind of metal pipe joint which equipped with ball bearing, the specification is 1"~4", the rated working pressure is 14~140Mpa(200psi-20000psi), we can supply normal temperature, low temperature and Sulfur-bearing gas condition used Chicksan Swivel Joint and repair kit.
| Description | Specification | Model | End Connection |
| Short radius swivel joints | 1''x3500psi(25Mpa) | Style 10,50 | LP Female Thread |
| 1"-1/2x6000psi(42Mpa) | Style 10,50 | LP Female Thread | |
| 1"-1/2x10000psi(70Mpa) | Style 10,50 | LP Female Thread | |
| 2"x6000psi(42Mpa) | Style 10,50 | NPT Female Thread | |
| 2"x10000psi(70Mpa) | Style 10,50 | ||
| 1-1/2"Long radius swivel joints | 1"-1/2x10000psi(70Mpa) | Style 10 | LP Female |
| 1"-1/2x10000psi(70Mpa) | Style 50 | LP Female | |
| 2"Long radius swivel joints | 2"x10000psi(70Mpa) | Style 10,20,50 | LP or TBG Female |
| 2"x10000psi(70Mpa) | Style 10,50 | MxF(Tr100x12.7) | |
| 2"x10000psi(70Mpa) | Style 10,50 | MxF(Tr100x12) | |
| 2"x10000psi(70Mpa) | Style 10,50,80,100 | MxF,MxM,FxF | |
| 2"x10000psi(70Mpa) | Style 20,30,60 | MxF(Tr/America) MxM | |
| 2"x15000psi(105Mpa) | Style 10,50,80,100 | MxF,MxM,FxF | |
| 2"x15000psi(105Mpa) | Style 20,30,60 | MxF(Tr/America)MxM | |
| 2"x20000psi(140Mpa) | Style 10,50 | MxF,MxM | |
| 3"Long radius swivel joints | 3"x10000psi(70Mpa) | Style 20,50 | Lp or TBG Female |
| 3"x10000psi(70Mpa) | Style 10,50,80,100 | MxF,MxM,FxF | |
| 3"x10000psi(70Mpa) | Style 20,30,60 | MxF(Tr,America) MxM | |
| 3"x15000psi(105Mpa) | Style 10,50,80,100 | MxF,MxM,FxF | |
| 3"x15000psi(105Mpa) | Style 20,30,60 | MxF,MxM | |
| 3"x20000psi(140Mpa) | Style 10,50 | MxF,MxM | |
| 4"Long radius swivel joints | 4"x6000psi(42Mpa) | Style 10,50 | MxF,MxM,FxF |
| 4"10000psi(70Mpa) | Style 10,50 | MxF,MxM,FxF |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
