Product Details:
|
| Product Name: | Chicksan Swivel Joint | Connection: | M*F |
|---|---|---|---|
| Working Pressure: | 14~140MPa | Material: | Alloy Steel |
| Weight: | 18 Kg | Style: | Style 80 |
| Color: | Red | Warranty: | 18 Months |
| High Light: | Fig1502 Oilfield Wellhead Tools,FMC Type Oilfield Wellhead Tools,High Pressure Elbow Union Swivel Joint |
||

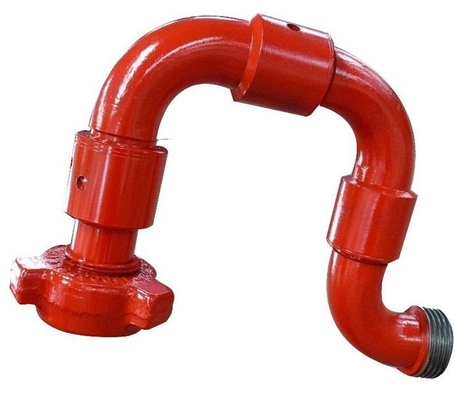

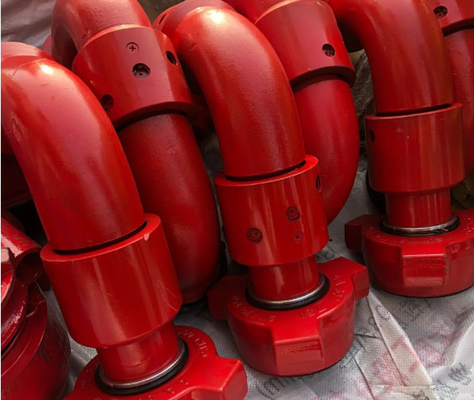

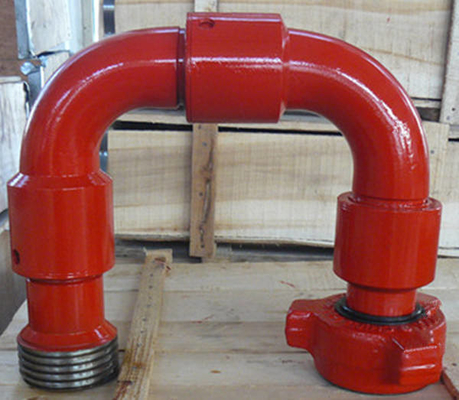

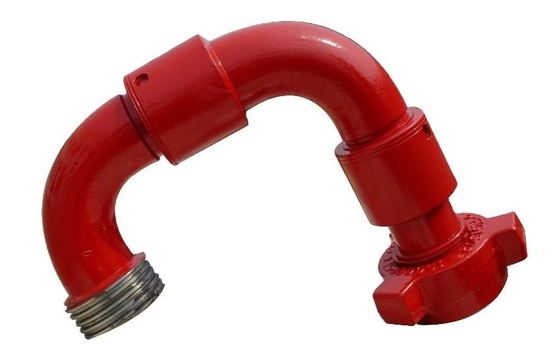

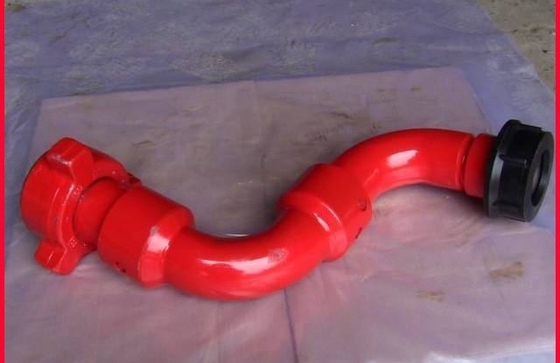

API 6A SPM FMC Type Fig1502 Oilfield Wellhead Tools High Pressure Elbow Union Swivel Joint
Oilfield Wellhead Equipment Swivel Joint Description:
The swivel joint is made from high strength alloy steel by forging and the heat treament is carried out on it,thus its service strength and long service life are guaranteed under the rated working pressure.Both ends of it can be connected by the LP inner thread connection and also can be connected by union.It can apply to installation ways of various kinds of pipelines.
Swive Joint feature of Oilfield Wellhead Equipment
1. Our swivel joints, with integral ball bearing.
2. Various models of swivel joints and their repair kits are available, suitable for normal or low temperature, or H2S environments, with sizes ranging from 1" to 4" and rated WP ranging from 2000psi~20000psi (14MPa~140MPa).
3. We can supply long and short radius swivel joints. Long radius swivel joints can minimize fluid shock, and has better performance of resistance for scouring and erosion. We also need to use short radius swivel joints for low pressure operation due to limited installation space.
4. Patterns of swivel joint with even wall thickness and longer service life. Wall thickness difference of inner and outer arcs can meet API standard. Our design can bear heavy load stably, and ensure less vibration with variable load.
5. All sizes of swivel joints can be interchanged with equivalent products used in cementing and fracturing equipment.
6. Sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced.
7. Usually good lubrication can ensure that swivel joints work normally without much maintenance.
Technical parameter of Oilfield Wellhead Equipment
| Description | Specification | Model |
| Short radius swivel joints | 1''x3500psi(25Mpa) | Style 10,50 |
| 1"-1/2x6000psi(42Mpa) | Style 10,50 | |
| 1"-1/2x10000psi(70Mpa) | Style 10,50 | |
| 2"x6000psi(42Mpa) | Style 10,50 | |
| 2"x10000psi(70Mpa) | Style 10,50 | |
| 1-1/2"Long radius swivel joints | 1"-1/2x10000psi(70Mpa) | Style 10 |
| 1"-1/2x10000psi(70Mpa) | Style 50 | |
| 2"Long radius swivel joints | 2"x10000psi(70Mpa) | Style 10,20,50 |
| 2"x10000psi(70Mpa) | Style 10,50 | |
| 2"x10000psi(70Mpa) | Style 10,50 | |
| 2"x10000psi(70Mpa) | Style 10,50,80,100 | |
| 2"x10000psi(70Mpa) | Style 20,30,60 | |
| 2"x15000psi(105Mpa) | Style 10,50,80,100 | |
| 2"x15000psi(105Mpa) | Style 20,30,60 | |
| 2"x20000psi(140Mpa) | Style 10,50 | |
| 3"Long radius swivel joints | 3"x10000psi(70Mpa) | Style 20,50 |
| 3"x10000psi(70Mpa) | Style 10,50,80,100 | |
| 3"x10000psi(70Mpa) | Style 20,30,60 | |
| 3"x15000psi(105Mpa) | Style 10,50,80,100 | |
| 3"x15000psi(105Mpa) | Style 20,30,60 | |
| 3"x20000psi(140Mpa) | Style 10,50 | |
| 4"Long radius swivel joints | 4"x6000psi(42Mpa) | Style 10,50 |
| 4"10000psi(70Mpa) | Style 10,50 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service

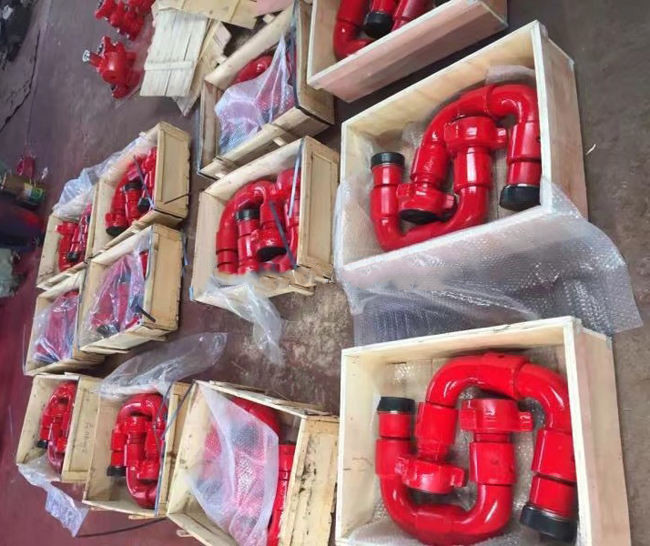

5. How is the packing?
