Product Details:
|
| Product Name: | API 6A Tubing Head And Tubing Head Spool | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Red/Bule/As Your Request | Processing Type: | Forging |
| Machine Type: | Drilling Equipment | Use: | Well Drilling /Oilfield Wellhead |
| Working Pressure: | 2000 Psi-15000PSI | Type: | Mine Sieving Mesh, Tubing Head |
| Weight: | 800 Kgs | Warranty: | 1 Year |
| High Light: | Forging Casing Head Spool,Oilfield Drilling Tubing Head,X Mas Tree Casing Head Spool |
||
API 6A Oilfield Wellhead Equipment Drilling X-Mas Tree Tubing Head/Casing Head Spool
What is API 6A Wellhead Equipment & X-mas Tree Product?
Wellhead and Christmas tree is an important oil and gas exploration equipment, composed by three parts of the casing head, tubing head, oil (gas) tree used to connect casing string, tubing string and sealing layers between the casing and tubing the annular space between, and control production wellhead pressure and regulate oil (gas) wellhead flow, can also be used for acid fracturing, water injection, testing, and other special operations.
API 6A Wellhead Equipment & X-mas Tree Basic parameters
| Parameter | Type | |||||||
| KQ65/21 | KQ65/35 | KQ80-65/35 | KQ65/70 | KQ78-65/70 | KQ65/105 | KQ78-65/105 | ||
| Rated pressure | 3500psi | 5000psi | 5000psi | 10000psi | 10000psi | 15000psi | 15000psi | |
| Nominal | Main | 2 9/16” | 2 9/16” | 3 1/8” | 2 9/16” | 3 1/16” | 2 9/16” | 3 1/16” |
| Size | Size | 2 9/16” | 2 9/16” | 2 9/16” | 2 9/16” | 2 9/16” | 2 9/16” | 2 9/16” |
| Working pressure | LU,PU | LU,PU | LU,PU | LU,PU | LU,PU | LU,PU | LU,PU | |
| Available Medium | Oil,Gas | Oil,Gas | Oil,Gas | Oil,Gas | Oil,Gas | Oil,Gas | Oil,Gas | |
| PSL | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | |
| PR | 1~2 | 1~2 | 1~2 | 1~2 | 1~2 | 1~2 | 1~2 | |
| Material Class | AA~FF | AA~FF | AA~FF | AA~FF | AA~FF | AA~FF | AA~FF | |
| Connection Type | Clamp, | Clamp, | Clamp, | Flanged | Flanged | Flanged | Flanged | |
| Flanged | Flanged | Flanged | ||||||

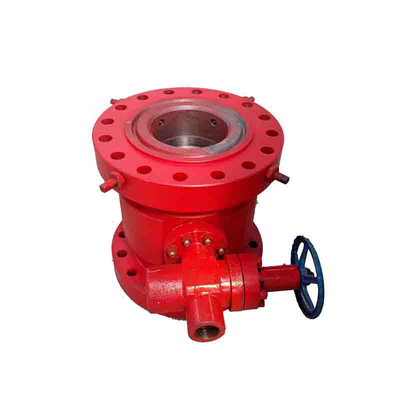

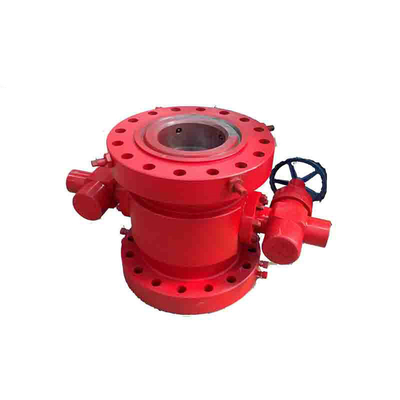

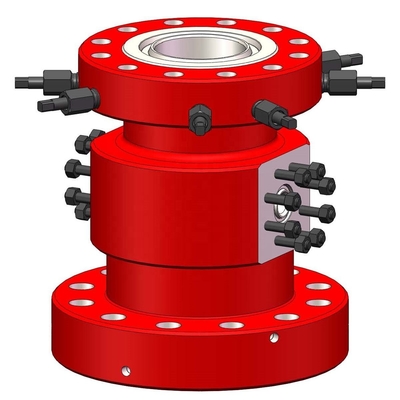

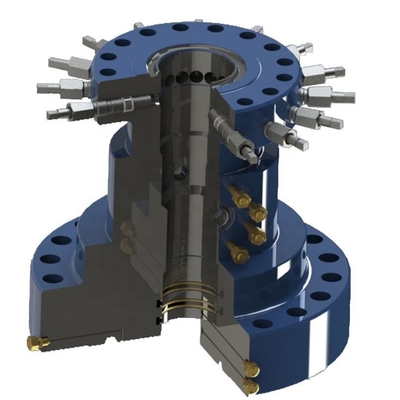

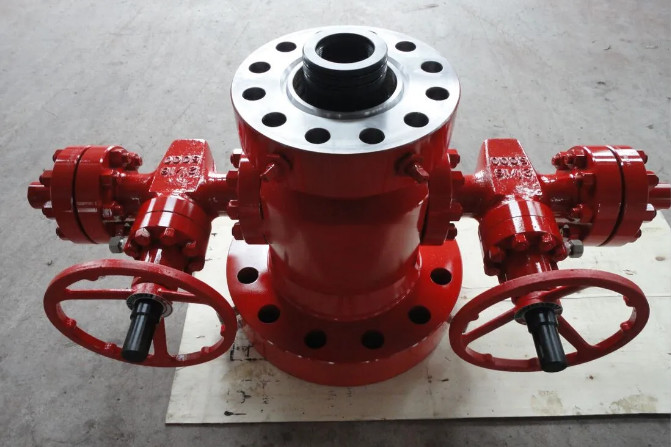

API 6A Tubing head spool housing
• Flanged top and bottom connections available in sizes from 7-1/16" through nominal 20"
• Pressure ratings from 2,000 psi through 15,000 psi
• Accepts a full line of single completion tubing hangers
• Providing a loading shoulder which can support tubing hanger and sealing.
• Providing a sealing bore for hanger and packing.
• Providing secondary sealing for previous casing top.
• Providing a support and testing BOP after well completion.
