Product Details:
|
| Warranty:: | 1 Year | Weight (KG):: | 150 |
|---|---|---|---|
| Hose Size:: | 1/4'NPT,1/8"NPT,Or Other | Rated Output Oil Pressure:: | 3MPa |
| Environmental Temperature:: | -20℃ ~ +60℃ | Oil Line:: | M22 * 1.5 |
| Material:: | Carbon Steel | Processing Type:: | Carbon Steel Or Stainless Steel |
| High Light: | API Oilfield Wellhead Equipment,Choke Manifold Control Panel,Carbon Steel Oilfield Control Panel |
||

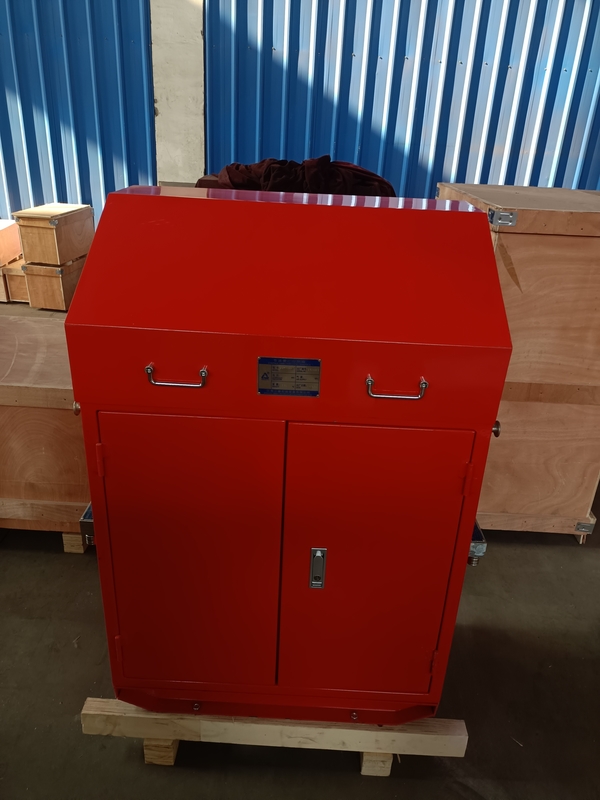

Oilfield Wellhead Equipment Control Panel For Choke Manifold
A. Usage of Control Panel For Choke Manifold:

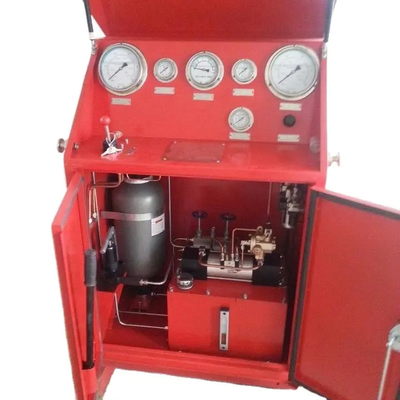

The hydraulic choke throttling manifold control box is control device for the hydraulic choke manifold, it may control the open
and close of hydraulic choke valve remotely and may indicate the valve rod inside pressure,casing pipe pressure and the switch
position of hydraulic valve . Thus,it may control well blow successfully. It is necessary equipment to perform oil /gas well
pressure control technology.
B. Main technical parameter
1. Air source pressure:0.6MPa (cleaning air source excluded oil water and dust).
2. Environmental temperature: -20℃ ~ +60℃
3. Rated output oil pressure: 3MPa
4. Max output oil pressure: 4MPa
5. Gas line - quick coupling connection size: M16 × 1.5.
6. Oil line - quick coupling connection size: M22 × 1.5.
7. Hydraulic oil specification :10#,12# aircraft hydraulic oil
| Item | Value |
| Condition | New |
| Warranty | 1 Year |
| Applicable Industries | Energy & Mining |
| Weight (KG) | 32 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Type | Choke Manifold Control Console |
| Machine Type | Drilling Equipment |
| Material | Carbon Steel |
| Processing Type | Carbon steel or stainless steel |
| Use | Well Drilling |
| Certification | API |
| Hose | include |
| Hose size | 1/4'NPT,1/8"NPT,Or other |
| Pump | handle |
| Air source pressure | 0.6MPa |
| Environmental temperature | -20℃ ~ +60℃ |
| Rated output oil pressure | 3MPa |
| Max output oil pressure | 4MPa |
| Gas line | M16 * 1.5 |
| Oil line | M22 * 1.5 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
