Product Details:
|
| Product Name: | Oil Well Tubing Head Drilling Spool | Material: | Carbon Steel |
|---|---|---|---|
| Working Pressure: | 2000PSI~20000PSI | Nominal Size: | 1-13/16" ~ 30" |
| Material Level: | AA~EE | Specification Class: | PSL1-PSL3 |
| Connection: | Flange Ends | Temperature Level: | K~U |
| Condition: | New | HS Code: | 8431431000 |
| High Light: | API 6A Oilfield Wellhead Equipment,Drilling Spool Oilfield Wellhead Equipment,Oil Well Tubing Head Drilling Spool |
||

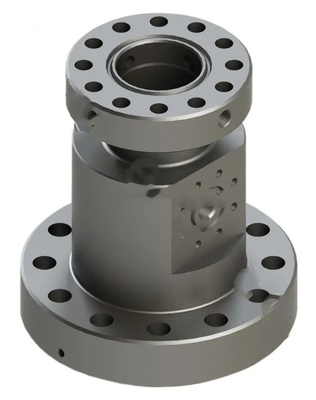

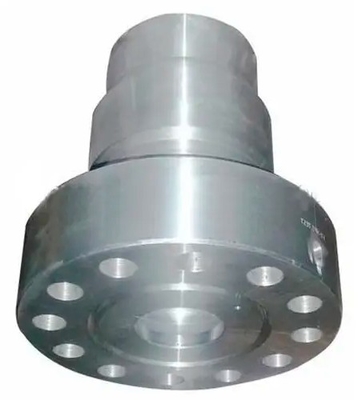

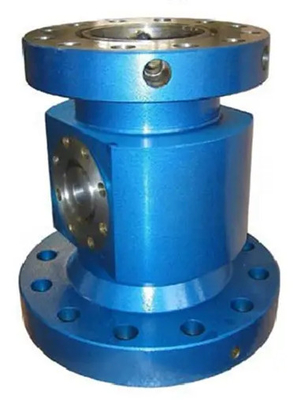

API 6A Oilfield Wellhead Equipment Oil Well Tubing Head Drilling Spool
Oilfield Wellhead Equipment Tubing Head Drilling Spool
Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top.

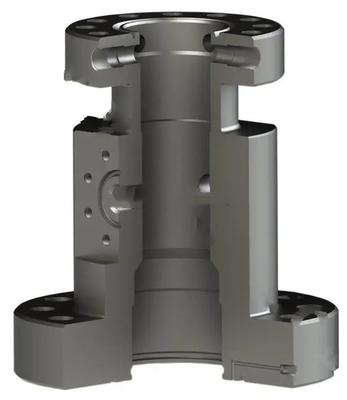

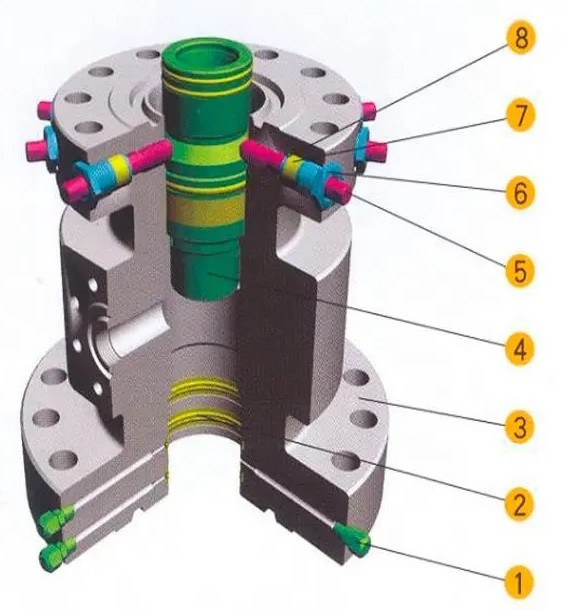

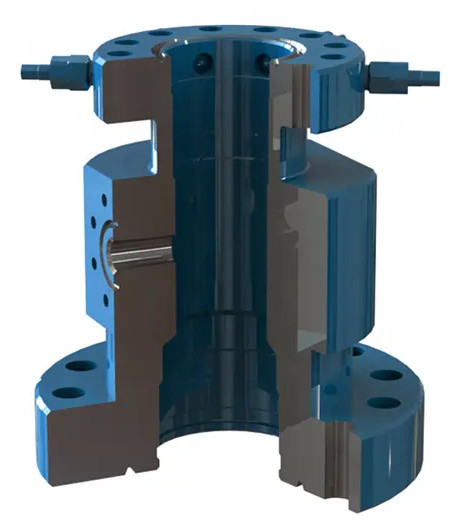

Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids damage to sealing areas by drilling tools, and provides wedging of the tubing hangers, bowl protectors and test plugs. the secondary seal for the last casing pipe can be an integrated "OO" seal type or the plastic injection type, but also accepts reducer bushings "4-O" and "PE" (Pressure Energized).The upper flange is supplied with lockdown screws for packoff tubing hanger retention. The lower flange includes a grease fitting and orifice for testing of the secondary seal.
| Product Name | tubing head spool |
| Working Pressure | 2000 ~10000psi |
| Nominal Bore | 7-1/16 ~13-5/8 |
| Working Medium | oil,natural gas,mud and gas containing H2S,CO2 |
| Working Temperature | -46℃~121℃(Class LU) |
| Material Class | AA,BB,CC,DD,EE,FF,HH |
| Specification level | PSL1-4 |
| Description | L (mm) |
| 3 1/8" X 5M To 3 1/8" X 5M | 1092 |
| 4 1/16" X 5M To 4 1/16" X 5M | 275 |
| 4 1/16" X 10M To 4 1/16" X 10M | 1588 |
| 4 1/16" X 15M To 4 1/16" X 15M | 614 |
| 5 1/8" X 5M To 5 1/8" X 5M | 287 |
| 7 1/16" X 5M To 7 1/16" X 5M | 700 |
| 9" X 5M To 9" X 5M | 5200 |
| 11" X 5M To 11" X 5M | 3048 |
| 13 5/8" X 3M To 13 5/8" X 3M | 3048 |
| 13 5/8" X 5M To 13 5/8" X 5M | 635 |
| 13 5/8" X 10M To 13 5/8" X 10M | 650 |
| 21 1/4" X 2M To 21 1/4" X 2M | 1400 |
| 26 3/4" X 3M To 26 3/4" X 3M | 2440 |
